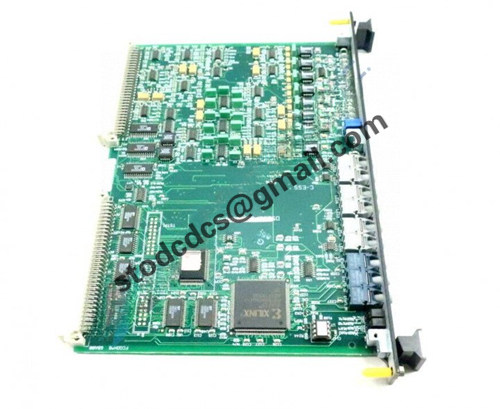

DS200FCGDH1A Control Module

Brand:GE
Model:DS200FCGDH1A
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

DS200FCGDH1A Control Module

Product manual:

DS200FCGDH1A is a Field Control General Distribution board in the GE Mark V system,
Its main function is to connect the signal path between the main control system and the on-site equipment, used for organizing
Isolate, allocate, and protect input and output channels to ensure the safe operation of the control system and the clarity of signal transmission.

It does not directly participate in logical processing, but exists as a signal distribution center and is a crucial "hub board" in the entire I/O system.

major function
Signal channel management: Receive control signals from the main control board and allocate them to the corresponding output channels.

Electrical isolation and protection: Provide channel electrical isolation to prevent on-site electrical interference from entering the system.

Structure and Interface Characteristics
Multiple sets of plug-in terminal blocks facilitate large-scale signal access

Protective components (such as TVS and fuses) are installed inside the printed circuit board

Clear channel identification for quick signal positioning

Used in conjunction with TCQA, TCCB, TCCS, TCEA and other boards

Typical application scenarios
gas turbine control system

Manage sensor/actuator interfaces for ignition, fuel, speed, exhaust, etc

Steam turbine system

Control steam pressure, condensate level, temperature control valve and other equipment

Power plant automation system

Handling a large number of scattered on-site switch and analog signals
