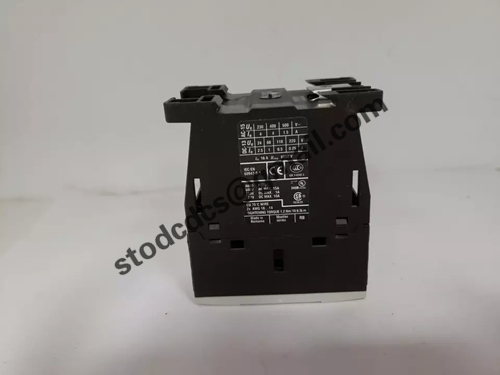

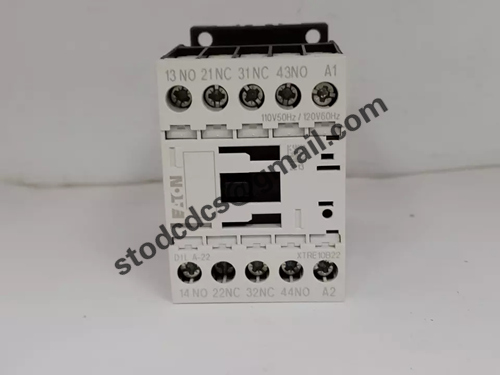

DILA-22 relay

Brand:ABB
Model:DILA-22
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

DILA-22 relay

Product manual:

DILA-22 is an auxiliary relay/contactor produced by Eaton, used for controlling signal switching and remote control in auxiliary circuits. It is usually used in conjunction with main contactors or relays and is widely used in industrial automation, power systems, and mechanical control fields.

main features
Auxiliary contact configuration: 2 normally open (NO)+2 normally closed (NC), suitable for various control requirements.

High reliability: The contacts are made of wear-resistant materials to ensure long-term stable operation.

Modular design: compatible with DIL series main contactors and easy to expand.

Compact structure: Supports DIN rail installation, saving space.

High mechanical durability: With a high rated lifespan, it is suitable for frequent operations.

technical specifications
Rated voltage: 24V, 110V, 230V AC/DC (depending on the specific model).

Rated current: 10A (suitable for low-power control circuits).

Contact configuration: 2NO+2NC.

Installation method: DIN rail or screw fixation.

Working temperature range:- 25 ° C to+55 ° C, suitable for harsh environments.

application area
Industrial automation: Used for auxiliary signal switching in PLC and relay control systems.

Power control system: used for status indication and signal transmission in substations and distribution cabinets.

Mechanical equipment: control motors, alarm devices, lighting systems, etc.

DILA-22 relay has a compact structure and stable performance, and is a common auxiliary control component in industrial and commercial electronic control systems.
