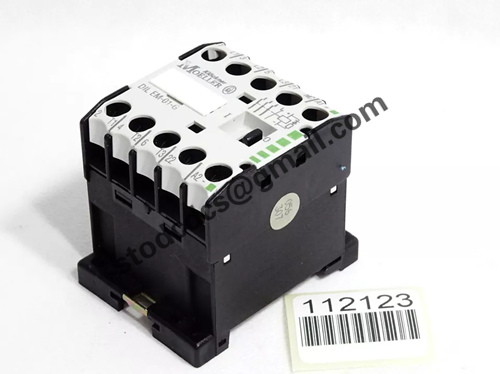

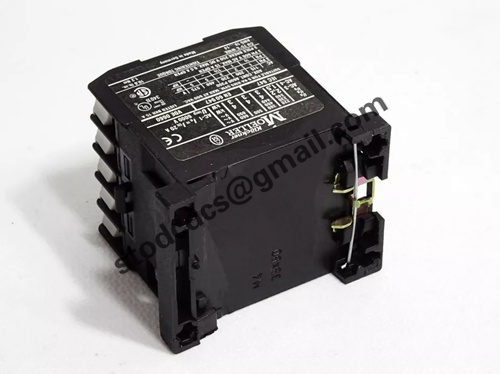

DIL EM-01-G contactor

Brand:ABB
Model:DIL EM-01-G
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

DIL EM-01-G contactor

Product manual:

DIL EM-01-G is a small electromagnetic contactor produced by Eaton, belonging to the DIL series, suitable for AC motor control and industrial automation distribution systems. This contactor has a compact design and high reliability, and is commonly used in 24V AC/DC control circuits.

2. Key parameters
Parameter specifications
Rated current (I ₑ) 9A (AC-3 load)
Rated voltage (U ₑ) 230V AC/400V AC
Control voltage (Uc) 24V AC/DC (optional other voltages)
Number of poles: 1NO (normally open main contact)
Mechanical lifespan of 10000000 cycles
Electrical lifespan 100000 times (AC-3)
Protection level IP20 (to be installed inside the control cabinet)
Certification standard IEC 60947-4-1, CE
3. Main functions
Motor control: suitable for ≤ 3kW three-phase asynchronous motors (400V AC).

Remote control: Automatic start stop is achieved through PLC or relay.

Modular design: expandable auxiliary contacts (such as DILA-22 auxiliary module).

Energy saving coil: Low power design (≤ 3W holding power).

4. Typical applications
Industrial machinery: conveyor belt, pump, fan control.

Building electrical: air conditioning units, lighting distribution.

Automation equipment: cooperate with PLC to achieve logical control.

5. Wiring and installation
Wiring Instructions
Main circuit (1/L1-2/T1): connects three-phase power supply and load.

Control circuit (A1-A2): Connect 24V control signal.

Auxiliary contacts (13-14): for status feedback (optional).

INSTALLATION REQUIREMENTS
DIN rail installation (35mm standard rail).

Torque specification:

Main terminal: 1.2 N · m
