DEIF CSQ-3 multifunctional synchronizer

Product manual:

main features
Synchronous measurement function
Real time monitoring and display of parameters such as voltage, frequency, phase angle, etc.
Automatic and manual synchronization
Support automatic synchronization mode to reduce operational complexity.
Provide manual operation function to meet special application requirements.
Flexible configuration
Support synchronous operation of single or multiple generators.
Adjustable synchronization range and parameters to meet different system requirements.
Compact design
Integrating multiple functions into one reduces the need for additional devices.
The shell is sturdy and durable, suitable for harsh industrial environments.
Communication capability
technical specifications
Input voltage range:
100-450V AC
Frequency range:
45-65 Hz
Phase angle accuracy:
±1°
Display:
High brightness LED display screen, visually displaying key synchronization parameters.
Working temperature:
-20 ° C to+70 ° C
Installation method:
Panel installation, compact size, compatible with multiple installation standards.
Protection level:
IP52 (front panel), IP20 (back panel).
application area
power plant
Multiple generators are connected to the grid for synchronous operation.
Ship power system
The grid connection operation between the main generator and the auxiliary generator or the power grid.
Industrial backup power supply
Switching and synchronization between the generator and the main power grid.
Oil and gas
Balance load and optimize resource utilization.
Operation process
Parameter monitoring:
Real time viewing of frequency, voltage, and phase difference on the device.
Adjustment:
Adjust the generator speed and voltage using external controllers or automatic functions within the device until synchronization conditions are met.
Grid connection:
When the synchronization conditions are met, a signal is sent to initiate the closure of the circuit breaker and complete the grid connection operation.
advantage
High precision synchronous measurement.
Automated functions reduce human errors.
Strong compatibility and can be integrated into complex power systems.
High durability and adaptability to harsh industrial environments.

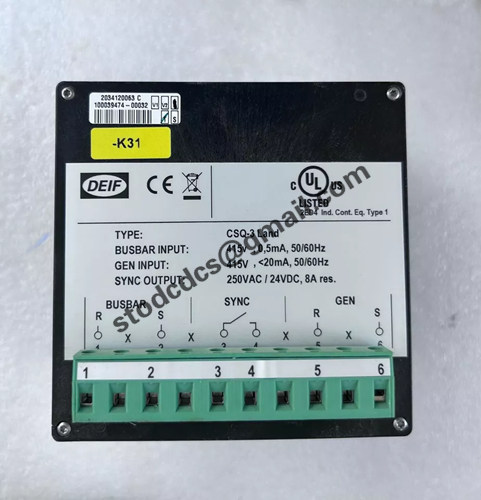

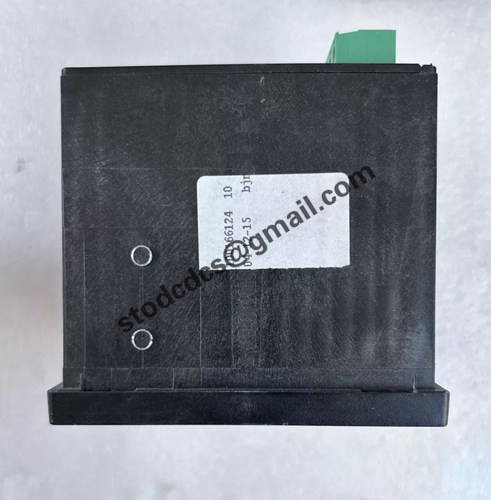

Product details picture:
