CONVERTEAM MVRL2100/4601 Liquid Cooler Module
Product manual:
MVRL2100-4601 is a liquid cooled rectifier module produced by Converteam (now GE Energy), mainly used for the MV3000 DELTA drive system.
The main function of this module is to convert AC power into unsmoothed DC power, providing reliable DC power support for medium voltage drive systems.
Main features:
Double six pulse rectifier design: Each module contains two three-phase six pulse rectifiers,
It can independently connect to communication inputs and provide flexible configuration options.
Support 12 pulse network bridging: achieve a 30 ° phase shift through an external power transformer,
Pre charging circuit: Built in pre charging circuit,
The DC link capacitor of the transistor module can be charged through a current limiting resistor to ensure safe system startup.
Liquid cooling design: Adopting liquid cooling method to improve heat dissipation efficiency, suitable for high power density application scenarios.
Temperature monitoring: equipped with thermistor and temperature controller, real-time monitoring of module temperature,
Provide over temperature protection to ensure stable system operation.
Application areas:
Medium voltage drive system: widely used in the field of industrial automation,
Provide stable DC power supply for medium voltage motors and drive equipment.
Power transmission and distribution: In the power system, it is used to convert alternating current into direct current,
Meet the power supply requirements of specific devices.
Renewable energy: used in wind and hydroelectric power systems for rectification and energy conversion to improve energy utilization efficiency.
Technical specifications:
Maximum DC output voltage: 1250 VDC
Cooling method: liquid cooling
Installation method: Compatible with standard DELTA installation framework

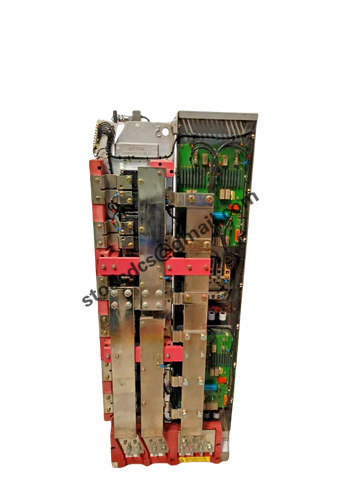

Product details picture:
