Brooks BM70020/CPU85 control board

Product manual:

main features
Multi axis motion control: Supports multi axis control such as XYZ axes, suitable for equipment that requires precise positioning, and provides stable synchronous control.
High performance processor: equipped with CPU85 processor, ensuring real-time data processing and response, suitable for complex control tasks and high-speed operations.
Modular design: The control board has a compact structure and is easy to integrate into various automation equipment or production lines, making it convenient for system expansion and upgrades.
Multiple interface support: Equipped with rich communication interfaces such as RS-232, CAN, Ethernet, etc., to achieve seamless connection with sensors, actuators, and other devices.
High precision feedback system: Built in feedback mechanism that can accurately monitor and adjust device position, ensuring control accuracy and response speed of the device.
Durable and sturdy: Designed to meet industrial standards, it has strong anti-interference ability, high temperature resistance, and vibration resistance, making it suitable for long-term operation in industrial environments.
application area
Semiconductor manufacturing: used in wafer processing, exposure, and packaging equipment to achieve high-precision equipment control and positioning.
Precision machining: suitable for equipment that requires multi axis control such as CNC machine tools, laser cutting, and welding, ensuring machining accuracy and efficiency.
Robot control: can be used as the core control unit of robots, supporting multi joint coordination and complex path planning.
Laboratory automation: used in high-precision sample transfer and operation equipment to ensure the accuracy and repeatability of experimental operations.
Overview of Technical Specifications
Processor: CPU85 high-performance processor, supporting multitasking.
Power requirements: Typically 24V DC, to be confirmed based on the specific model.
Interface types: including industrial interfaces such as RS-232, CAN, and Ethernet.
Working temperature: Suitable for industrial environments ranging from 0 ° C to 50 ° C.
Size: Compact modular design, easy to embed and install

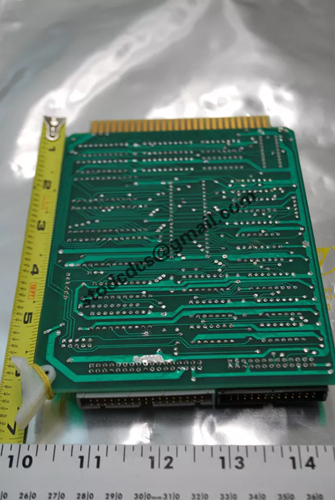

Product details picture:
