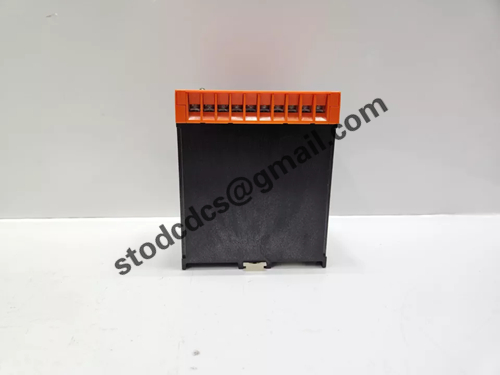

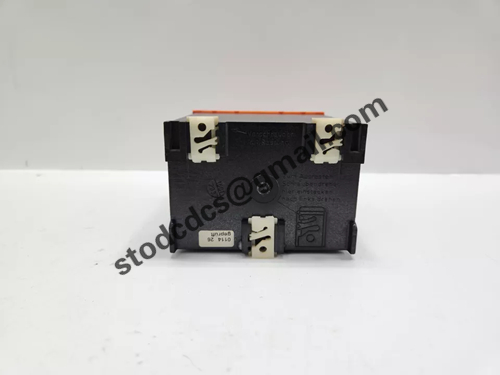

BN5930 safety relay

Brand:ABB
Model:BN5930
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

BN5930 safety relay

Product manual:

BN5930 is a safety relay module that is a core component of safety control systems, used to monitor and protect machine safety circuits. It complies with IEC 61508 and ISO 13849-1 safety standards and is suitable for safety functions such as emergency stop, safety door monitoring, and grating protection.

2. Key parameters
Parameter specifications
Input type dual channel (safety input, such as emergency stop button, safety door switch)
Output type safety relay contacts (3 safety contacts, 1 auxiliary contact)
Rated voltage 24V DC (operating range: 18-30V DC)
Maximum load current 6A (resistive load)
Response time ≤ 20ms
Safety level SIL 3/PL e (compliant with ISO 13849-1)
Protection level IP20 (to be installed inside the control cabinet)
Certification standards CE, UL, T Ü V
3. Main functions
Dual channel monitoring: detects the status of safety inputs (such as emergency stop, safety door) to ensure reliable disconnection of the safety circuit.

Forced Guided Contact (NC+NO): Ensure that the contacts do not close simultaneously to prevent short circuit faults.

Automatic/Manual Reset: Can be configured as automatic reset or manual reset (safety conditions need to be confirmed).

Status indication: LED indicator lights display power, input status, and fault information.

4. Typical applications
Emergency stop circuit (E-Stop): Monitor the status of the emergency stop button and quickly cut off the power supply.

Security door monitoring: Detect the security door switch to prevent the door from being opened during equipment operation.

Grating/safety scanner: linked with safety grating to protect hazardous areas.

Two handed control: Ensure that the operator presses the start button with both hands simultaneously.
