Bently 3500/91-02-00 190782-01 Communication Gateway Module

Product manual:

Bently Nevada 3500/91-02-00 (part number: 190782-01) is a communication gateway module designed to provide data communication functionality for 3500 series racks, supporting EGD (Ethernet Global Data) protocol.
Main functions:
Protocol support: Compatible with EGD V2.01 and Ethernet UDP/IP protocols to achieve efficient data transmission.
Ethernet interface: Provides 10BASE-T and 100BASE-TX (twisted pair) network connections, compliant with IEEE 802.3 standard.
Data exchange: Supports data exchange between producers and consumers, including rack status, alarm reset, alarm suppression, and other functions.
System compatibility: It can be integrated with control systems that support EGD protocol (such as GE Mark VIe) to achieve status monitoring and data analysis.
Technical parameters:
Power consumption: Typical power of 7.4W.
Installation method:
The main module occupies a full height slot at the front of the 3500 rack.
The I/O module is installed in the corresponding slot at the rear of the rack.
Front panel indicator light:
OK indicator light: displays the operating status of the module.
TX/RX indicator light: Indicates network communication status.
Application scenarios:
Power industry: used for monitoring power plant equipment to improve operational efficiency.
Oil and gas: Real time monitoring of the health status of rotating equipment to prevent equipment failures.
Industrial automation: Connect SCADA/DCS systems to achieve remote monitoring and data management.
This module can significantly improve the monitoring capability of the system and is suitable for industrial environments that require high reliability and real-time performance.

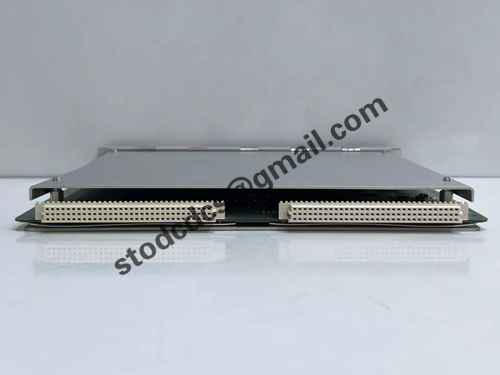

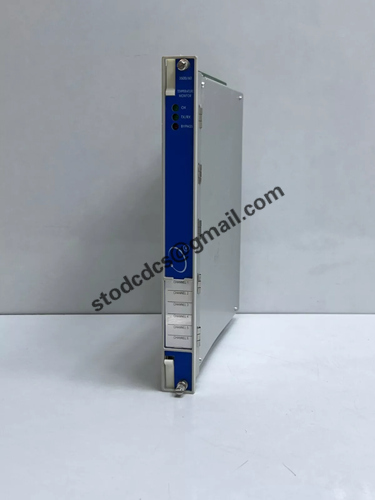

Product details picture:
