Bently 3500/77M 176449-07 Pressure Monitor

Product manual:

The Bently Nevada 3500/77M (176449-07) pressure monitor module is a high-performance monitoring device,
Used for pressure signal monitoring and analysis in industrial applications, providing real-time protection and alarm functions.
This module is part of the 3500 series and is widely used for status monitoring of critical equipment,
Especially in scenarios that require high reliability and precise pressure monitoring.
Product Overview
Attribute Details
Model 3500/77M
Order number 176449-07
Equipment type: Pressure monitor module
Bently Nevada 3500 Series
Main functions include real-time pressure monitoring, alarm, data analysis, and protection
Installation position: Installed in the 3500 frame
Key features
Multi channel monitoring:
Provide multiple input channels to monitor multiple pressure points simultaneously.
Each channel is independently configured to meet complex monitoring requirements.
High resolution signal processing:
Support real-time acquisition and high-precision processing of pressure signals.
Integrate digital signal processing (DSP) units to ensure data accuracy.
Alarm function:
Equipped with Alert and Danger alarm levels.
The alarm threshold can be freely set and adapted to various device operating conditions.
Data recording and analysis:
Support real-time data output for easy analysis of device operation status.
Can record historical pressure data for trend analysis and fault diagnosis.
Adapt to harsh environments:
The design meets industrial standards and can operate stably in environments such as high temperature, high humidity, and vibration.
technical parameter
Parameter details
Multiple input channels
Support sensor types, pressure sensors
The specific pressure range depends on the sensor configuration (usually -15 psi to+5000 psi)
Sampling frequency up to 10 kHz
Alarm output alarm and danger alarm, relay triggered
The power supply voltage is supplied through a 3500 frame
Integration of Communication Interface and 3500 Framework Data Bus
Working temperature -30 ° C to+65 ° C
Storage temperature -40 ° C to+85 ° C
Protection level industrial grade, anti vibration, dustproof, moisture-proof

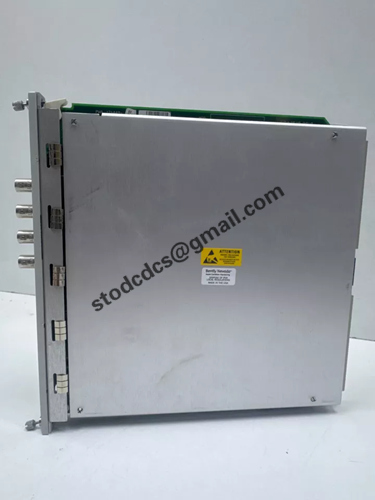

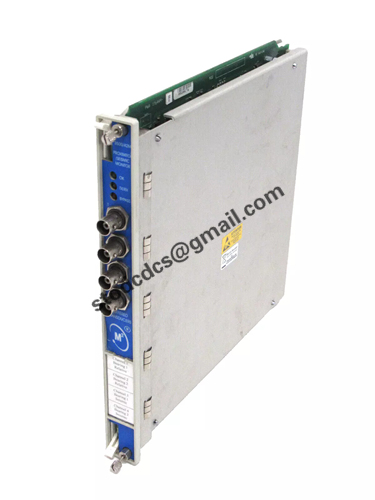

Product details picture:
