Bently 3500/64M 176449-05 Pressure Monitoring Module

Product manual:

Bently Nevada 3500/64M 176449-05 Pressure Monitoring Module
It is a universal pressure monitoring module designed specifically for vibration and condition monitoring of mechanical equipment.
It is part of the Bently Nevada 3500 series and is primarily used for critical equipment
Measurement, monitoring, and protection of pressure signals in systems such as turbines, compressors, and pumps.
Product Overview
Model: 3500/64M 176449-05
Brand: Bently Nevada
Function: Real time measurement and monitoring of pressure signals, providing operational status data of mechanical equipment, supporting alarm and protection functions.
Key technical parameters
Parameter description
Input signal supports differential and single ended pressure sensor signal input
Input range ± 20 mA or ± 10 V, flexible selection according to configuration
The number of channels supports 4 pressure input channels
Resolution 16 bit high-precision analog-to-digital conversion
The alarm function has warning and danger alarm levels to ensure timely fault response
The communication interface supports communication with the 3500 series framework and provides data integration capabilities
Configure software using Bently Nevada 3500 series system configuration tool
The power demand is supplied through the 3500 framework
Working temperature -30 ° C to+65 ° C
The external dimensions comply with the standard dimensions of the 3500 series module
Certification standards comply with API 670 and other industry standards

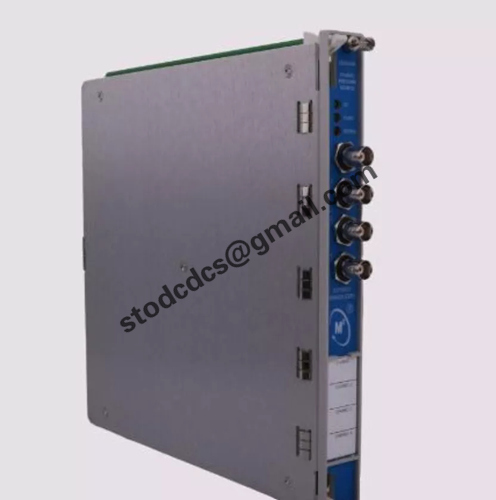

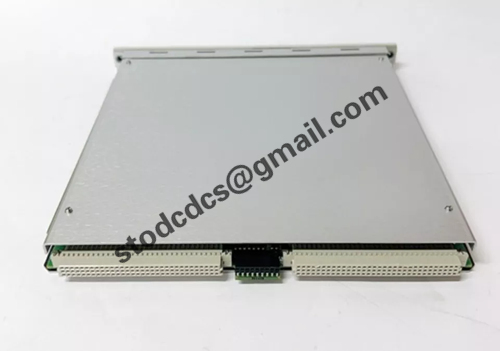

Product details picture:
