BENTLY 3500/44M 176449-03U Vibration Monitor

Product manual:

Product Features
Multi functional vibration monitoring
Support multiple vibration parameter monitoring, including absolute vibration, relative vibration, and bearing vibration.
Provide high-precision data collection and real-time monitoring.
Modular design
Compatible with Bently Nevada 3500 series framework systems.
Can be used in conjunction with other modules to meet different monitoring needs.
Flexible input configuration
Supports multiple types of sensors, including accelerometers, velocity sensors, and displacement sensors.
Each channel can independently configure input parameters, flexibly adapting to multiple applications.
Alarm function
Support alarm limit setting, including warning and danger levels.
Provide relay output for triggering protective devices or issuing alarm signals.
data communication
Support seamless integration with 3500 series systems, enabling remote monitoring and data analysis through system communication modules.
high reliability
Industrial grade design, adaptable to harsh environments, and resistant to electromagnetic interference.
Provide redundant configuration options to ensure high availability of the system in critical applications.
technical parameter
Number of channels
Supports vibration monitoring for up to 4 channels.
Input type
Compatible with the following sensors:
Accelerometer
speed sensor
Displacement sensors (such as eddy current probes)
type of output
Relay output: used for alarm triggering or protection system linkage.
Analog output: Provides 4-20mA signal and supports integration with other systems.
Alarm settings
Support user-defined alarm thresholds:
Warning
Danger
Provide automatic and manual reset options.
Power requirements
Working voltage: 24V DC or powered by 3500 series rack.
work environment
Temperature range: -30 ° C to+65 ° C.
Humidity range: 5% to 95% (without condensation).
Installation method
Installed in the 3500 series rack and secured through standard slots.

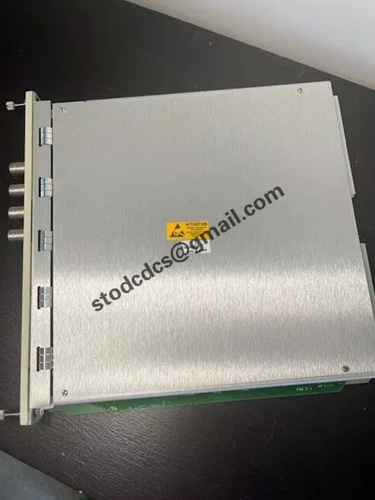

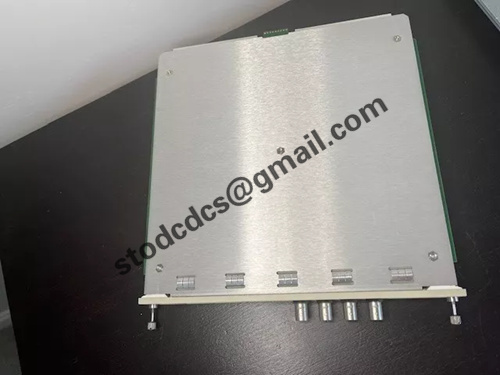

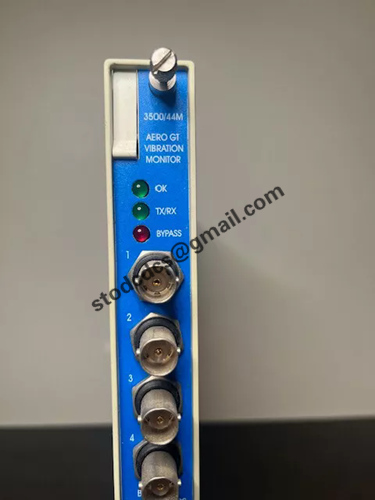

Product details picture:
