Bently 3500/42M 140482-01 Input/Output Module

Product manual:

Bently Nevada 3500/42M 140482-01 Input/Output Module
It is a key component of the 3500 monitoring and protection system, dedicated to monitoring and processing vibrations of rotating machinery and equipment
Temperature, pressure and other signals. This module can provide high-precision input and output functions,
It is the foundation for implementing device monitoring, alarm and control.
Real time data monitoring
Real time capture and processing of signals from on-site sensors, supporting continuous data stream processing.
It can perform multi-channel input and output to meet the needs of large equipment or multiple monitoring points.
Flexible configuration and scalability
Flexible configuration, supporting multiple sensor types and input-output configurations.
Modular design, supporting interconnection with other 3500 series modules, facilitating system scalability.
Alarm and protection functions
Built in alarm system, supports two-level alarms (warning and danger), configurable thresholds and triggering conditions.
Support linkage with other system modules to trigger protection or safe shutdown.
Powerful data output function
Support the transmission of collected signal data to the upper control system (such as SCADA, DCS).
Can output real-time monitoring data for remote monitoring and data analysis.
technical specifications
Number of input channels: up to 16 input channels (the specific number of channels depends on the specific configuration).
Input type: Supports multiple signal inputs, such as vibration, displacement, acceleration, pressure, temperature, etc.
Output function: Provides multiple output channels for alarm, control, or data transmission.
Signal processing: The built-in digital signal processor (DSP) filters, converts, and analyzes the input signal.
Alarm mechanism:
Alert: Used to indicate minor abnormalities.
Danger: Used to trigger emergency protection or shutdown measures.
Data output interface: Supports compatible connections with SCADA, DCS, and PLC systems.
Working temperature:- 30 ° C to+65 ° C.
Environmental adaptability: 5% to 95% (no condensation).
Power supply method: Powered by 3500 racks.

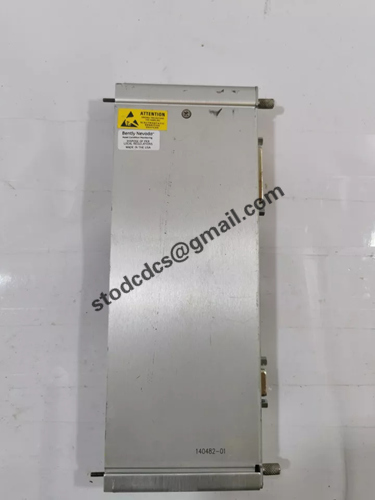

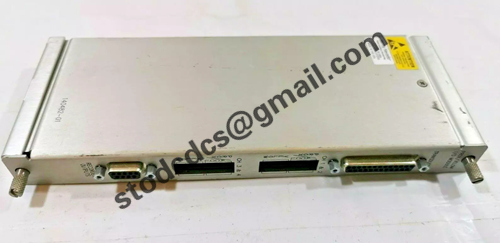

Product details picture:
