Bently 3500/42M 128229-01 Input/Output Module

Product manual:

Product Features
Multi functional vibration monitoring
Support monitoring of various vibration signals such as displacement, velocity, acceleration, etc.
High precision monitoring of dynamic parameters provides support for equipment fault diagnosis.
Modular design
Plug in design, easy to install and replace.
Seamless integration with the 3500 framework, occupying a single slot.
Alarm and protection functions
Provide two levels of alarm functions: Alert and Danger.
Can trigger the linkage response of relevant protective devices.
Real time data processing
Built in digital signal processor (DSP), supporting signal filtering and parameter calculation.
Real time analysis and trend tracking of monitoring signals can be performed.
Status indication and diagnosis
LED indicator lights display module and channel status in real-time, facilitating troubleshooting.
Equipped with self diagnostic function to ensure stable operation of the module.
Flexible configuration
Users can adjust monitoring parameters and alarm thresholds according to their needs.
Support the integration and configuration of multiple vibration sensors.
technical specifications
Number of channels: 4 independent input channels, each channel supports separate configuration.
Supported signal types:
Displacement
Velocity
Acceleration
Alarm function:
Dual level alarm: Alert and Danger.
Support alarm triggered output and linked protection device action.
Input signal range: Supports standard analog signal input and is compatible with multiple sensor types.
Power supply method: Powered by a 3500 frame, no additional power supply is required.
Data transmission: Supports outputting vibration data to the upper computer or data acquisition system.
Environmental adaptability:
Working temperature:- 30 ° C to+65 ° C
Storage temperature:- 40 ° C to+85 ° C
Humidity: 5% to 95% (without condensation)
Installation method: Insert into the 3500 frame, occupying one slot.

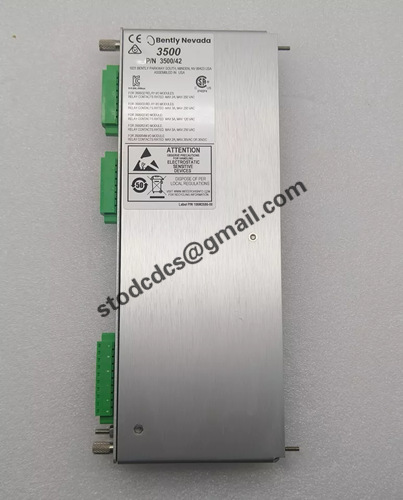

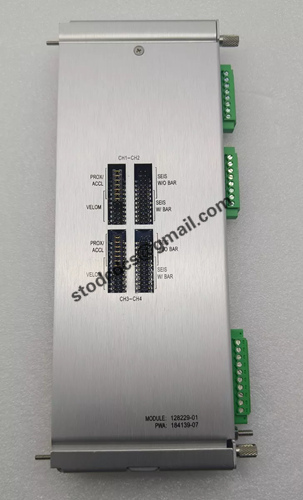

Product details picture:
