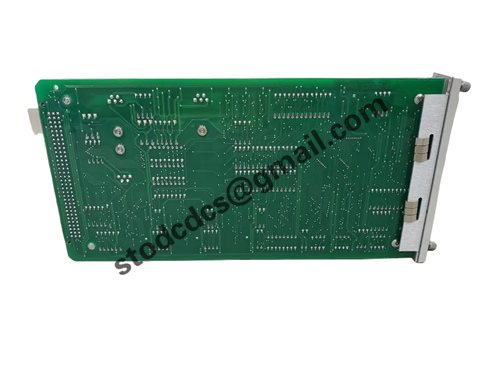

Bently 3500/34 125966-01 Relay Module

Brand: Bently
Model:3500/34 125966-01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Bently 3500/34 125966-01 Relay Module

Product manual:

Bently Nevada 3500/33 149986-01 Relay Module
It is an important component in the 3500 series mechanical protection and monitoring system, used to provide flexible alarm and shutdown control functions for industrial equipment.
This module is designed specifically for critical rotating equipment and mechanical systems,
It can issue an alarm or trigger shutdown when the device is running abnormally to protect the safety of the equipment and personnel.
Main features of the product
Multi channel design
Provide 4 relay output channels, each of which can be independently configured.
Support different types of alarm conditions, such as high vibration, overspeed, abnormal bearing temperature, etc.
Flexible configuration
Supports multiple alarm logics, including Alert and Danger.
Easily implement logic programming through 3500 configuration software to meet complex monitoring requirements.
Modular design
Occupy one rack slot for easy installation, replacement, and system expansion.
Fully compatible with other 3500 modules.
high reliability
Industrial grade design, suitable for harsh environments such as high temperature and high humidity.
Support redundant configuration and provide higher system reliability.
Status indication
Equipped with LED indicator lights to display the working status of each relay channel.
Easy to quickly diagnose relay triggering and equipment status.
technical specifications
Number of relay channels: 4
Contact type:
Single Knife Double Throw (SPDT)
Supports normally open (NO) and normally closed (NC) contacts.
Contact rating:
Maximum current: 5A
Maximum voltage: 250VAC or 30VDC
Power requirement: Powered by a 3500 frame
Working temperature:- 30 ° C to+65 ° C
Storage temperature:- 40 ° C to+85 ° C
Humidity range: 5% to 95% (without condensation)
Installation method: Plug in design, occupying one 3500 frame slot.
