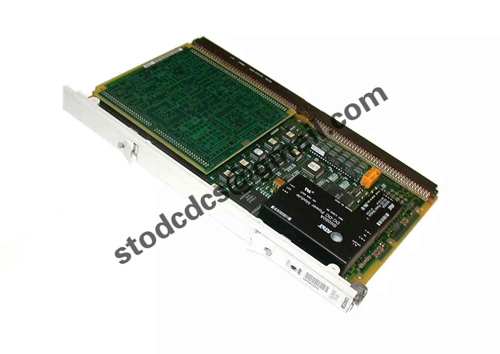

ALCATEL-LUCENT SNPQAVCAAC Channel Unit Module

Brand:Alcatel Lucent
Model:SNPQAVCAAC
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

ALCATEL-LUCENT SNPQAVCAAC Channel Unit Module

Product manual:

1. Product Overview
model: SNPQAVCAAC

Type: Digital Channel Processing Unit

Application: Mainly used for Alcatel Lucent (Nokia) SDH/OTN optical transmission equipment, providing business access and channelization processing capabilities

2. Core functions
Multi service access:

Supports STM-1/STM-4/STM-16 optical interfaces

Provide channelization processing for E1/T1 electrical interfaces

Supports Ethernet over SDH (EoS) functionality

Signal processing:

Complete the mapping/demapping from PDH to SDH

Support virtual container processing at all levels of VC-12/VC-3/VC-4

Provide pointer adjustment and cost handling

Protection features:

Support 1+1 channel protection

Equipped with Automatic Protection Switching (APS) function

Meet the 50ms switching time requirement

3. Technical parameters
Parameter category specification description
Interface type SFP optical port (optional 1310nm/1550nm)
The maximum business capacity supports 63 × E1 or 16 × E3 services
The jitter performance meets the G.823/G.825 standard
Typical power consumption is 25W, maximum value is 35W
Working temperature -5 ° C~+55 ° C
4. Typical applications
Traditional TDM network:

Used for transmission of Abis interface in 2G/3G base stations

Provide enterprise dedicated line E1 service access

Hybrid networking:

Smooth transition from TDM services to packet networks

Support CES (Circuit Simulation) business

Network transformation:

Expand Ethernet service capabilities on existing SDH equipment

Multi service aggregation for network edge

5. System compatibility
Equipment platform:

1665 Data Multiplexer (DMX)

1675 LambdaUnite MSS

1850 Transport Service Switch (TSS)
