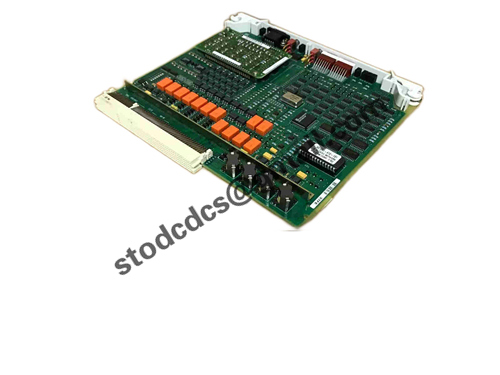

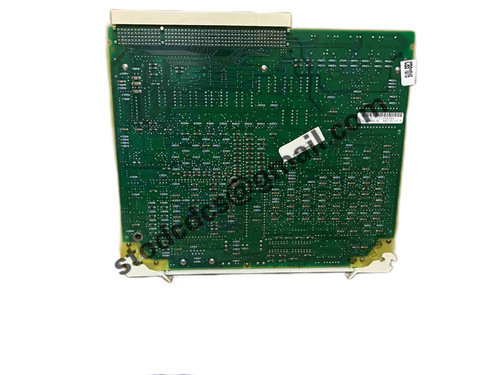

ALCATEL LUCENT SNCSBE0AAA circuit board

Brand:Alcatel Lucent
Model:SNCSBE0AAA
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

ALCATEL LUCENT SNCSBE0AAA circuit board

Product manual:

ALCATEL-LUCENT SNCSBE0AAA Circuit Board - Technical Analysis and Application Guide
1. Product positioning and core functions
SNCSBE0AAA is a high-density communication circuit board from Alcatel Lucent (now Nokia), mainly responsible for the following key functions:

Core data processing: Perform high-speed packet forwarding and protocol conversion

System Control Center: Manage board resources and device operating status

Business interface extension: providing physical connections for multiple network interfaces

2. Hardware architecture characteristics
2.1 Processing System

Adopting multi-core network processors (such as Broadcom DNX series)

Equipped with high-speed cache (usually 16-32GB DDR4 memory)

Integrated hardware acceleration engine (for specific operations such as encryption/decryption)

2.2 Exchange Architecture

Supports 400Gbps+switching capacity

Adopting a distributed switching matrix design

Provide non blocking data exchange capability

2.3 Interface Configuration

The standard configuration includes:

4 × 100G QSFP28 optical interface

8 × 25G SFP28 optical interface

2 × 10G Base-T electrical interface

Support hot swappable replacement

3. Typical application scenarios
3.1 Telecommunications Core Network

Deploy on 7750 SR core router

Undertake PE device functionality (MPLS VPN service edge)

Realize 100G backbone network interconnection

3.2 Data Center Network

Used for 7450 ESS business switch

Building Spine Nodes in Spine Leaf Architecture

Support overlay network technologies such as VXLAN

3.3 5G Carrier Network

Application in UPF devices of 5G core network

Handling high-speed data forwarding on the user interface

Support network slicing isolation

4. Key performance indicators
Parameter specifications
Throughput ≥ 400Gbps
Delay<10 μ s (line speed forwarding)
Typical power consumption: 150W (full load)
MTBF >100, 000 hours
5. Operation and maintenance management
Monitoring function:

Real time collection of temperature/voltage/optical power and other parameters

Provide BER (Bit Error Rate) detection

Management interface:

Support CLI/SNMP/NETCONF

Compatible with Nokia NFM-T network management system

Maintenance features:

Online diagnosis and fault location

Hot upgrade capability (business uninterrupted)
