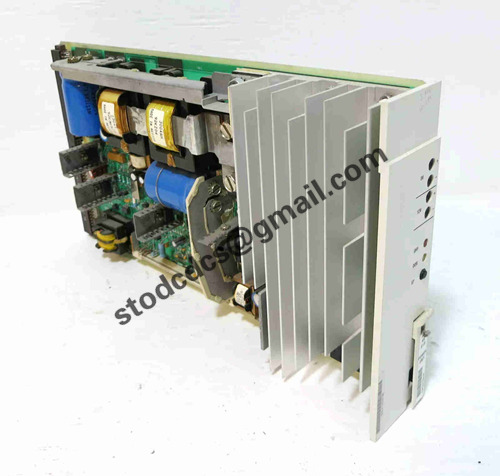

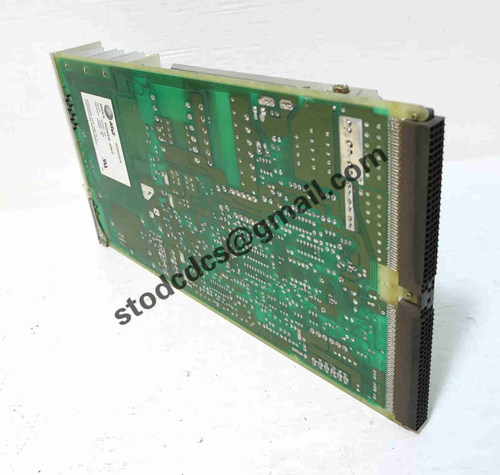

ALCATEL LUCENT PWPQAC8AB power module

Brand:Alcatel Lucent
Model:PWPQAC8AAB
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

ALCATEL LUCENT PWPQAC8AB power module

Product manual:

ALCATEL-LUCENT PWPQAC8AB Power Module - Technical Specifications and Application Guide
1. Product Overview
PWPQAC8AB is a high reliability power module designed by Alcatel Lucent (now Nokia) specifically for telecommunications grade network equipment, providing stable and efficient power supply.

2. Key characteristics
Input specifications:

Voltage range: 100-240V AC (automatic adjustment)

Frequency: 47-63Hz

Maximum input current: 10A

1.Output specifications:

2.Output voltage:- 48V DC (Telecommunications Standard)

3.Output power: 2000W

4.Output current: 41.6A (maximum)

Efficiency level:

94% (equivalent to 80Plus Platinum)

Low standby power consumption (<10W)

3. Hardware design
Physical dimensions:

Standard 1U height (44mm)

Modular hot swappable design

Cooling system:

Intelligent speed regulating fan

Support front and rear ventilation

Connector type:

Input: IEC C14 interface

Output: Customized power backplane connector

4. Protection mechanism
Protection type triggering condition recovery method
Overvoltage protection>58V DC automatic cut-off
Overcurrent protection>45A requires manual reset
Short circuit protection output short circuit automatic recovery
Overheating protection>85 ℃, recovery after temperature reduction
5. Typical application devices
Optical transmission platform: 1830 PSS series

Core router: 7750 SR series

Business Switch: 7450 ESS Series

Wireless device: AirScale base station

6. Installation and maintenance
Installation steps:

Ensure that the device power is turned off

Push the module along the guide rail until it locks in place

Connect the input power cord

Status indication:

Green LED: Normal operation

Red LED: Fault Status

Yellow LED: standby/energy-saving mode

Replacement suggestion:
