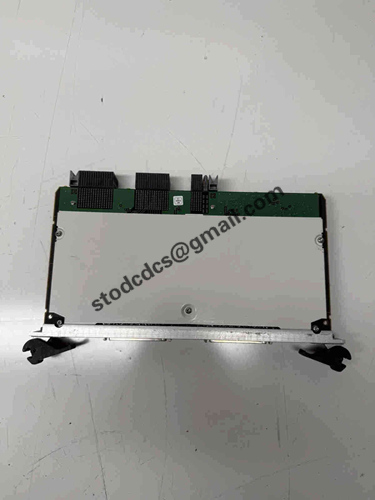

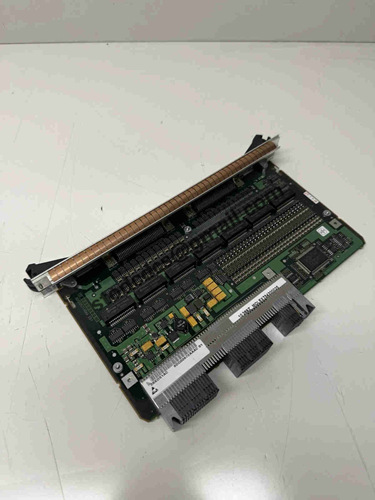

ALCATEL-LUCENT 8DG02672AAAC Ethernet Port Module

Brand:Alcatel Lucent
Model:8DG02672AAAC
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

ALCATEL-LUCENT 8DG02672AAAC Ethernet Port Module

Product manual:

1. Product Overview
Model: 8DG02672AAAC

Type: High density Ethernet business interface module

Positioning: Used for Alcatel Lucent (Nokia) core routing/switching equipment, providing high-performance Ethernet access capability

2. Core functional features
(1) Interface configuration
Port type:

Supports 10G SFP+(default) or 25G SFP28 (also compatible with optical module)

Optional 1G/10G Base-T (RJ45 electrical port, some versions support it)

Port density:

Single module provides 8 × 10G or 4 × 25G ports (hardware configurable)

(2) Business processing capability
Traffic forwarding:

Wire speed forwarding (non blocking), supporting Jumbo Frame (9K MTU)

Low latency design (<5 μ s, 64 byte grouping)

Protocol support:

Second layer protocol: IEEE 802.1Q VLAN、STP/RSTP/MSTP

Three layer protocol: IPv4/IPv6、ICMP/ARP/VRRP

Business functions: MPLS, QinQ, VXLAN (software support required)

(3) Advanced features
Quality of Service (QoS):

Supports 8 priority queues (802.1p/DSCP)

Shaping and Policing of Traffic

Security features:

MAC address filtering, port security (MAC Lock)

ACL access control (based on IP/port/VLAN)

(4) Reliability Design
Hot swappable: supports online replacement (OIR)

Redundancy protection: Supports LACP link aggregation (up to 8 member ports)

Fault detection: Port level BERT (bit error rate test)

3. Hardware specifications
Parameter specification description
Standard business board dimensions for external dimensions (depending on equipment model)
Power consumption 40W (typical value, ≤ 60W at full load)
Working temperature: 0 ° C~45 ° C (commercial grade)
Storage temperature -40 ° C~70 ° C
Humidity range 5%~95% (non condensing)
4. Compatibility and Deployment
(1) Adapting devices
Core router: 7750 SR-12, 7950 XRS

Business switch: 7450 ESS, 7705 SAR-H

Optical transmission equipment: 1830 PSS (requires cooperation with business daughter cards)

(2) Software dependency
Operating System: SR OS 14.0.R4 or higher

License requirements:

Basic function: default activation

Advanced features (such as MPLS, VXLAN): require separate authorization
