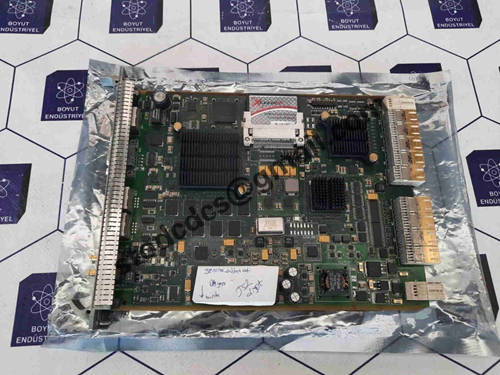

ALCATEL LUCENT 76-0300-02 Controller Module

Brand:Alcatel Lucent
Model: 76-0300-02
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

ALCATEL LUCENT 76-0300-02 Controller Module

Product manual:

ALCATEL-LUCENT 76-0300-02 Controller Module Technical Description
1. Basic specifications
Model: 76-0300-02

Manufacturer: Alcatel Lucent (now part of Nokia)

Equipment type: Communication equipment controller module

Typical application: Used as the main control unit for optical transmission equipment or access network equipment

2. Main functions
Equipment system control and management

Configure storage and operation maintenance

Alarm monitoring and fault diagnosis

Coordinate and communicate with other modules

3. Technical parameters
Project specifications
Processor architecture PowerPC or similar embedded processors
Memory capacity 512MB-1GB (varies by version)
4GB Flash storage space (for system software)
Communication interface Ethernet RS-232、 backplane bus
Working temperature: 0 ℃ to 40 ℃
4. Compatible devices
Optical transmission equipment:

1640 FOX series

1660 DMX Series

Access network equipment:

7302 ISAM (Intelligent Service Access Manager)

7330 ISAM FTTN

5. Description of status indicator lights
RUN (green): Running status

ALM (red): Alarm status

ACT (yellow): primary standby status

ETH (green/yellow): Ethernet activity

6. Maintenance and troubleshooting
common problem:

Module unable to start: Check power and backplane connections

Configuration loss: Replace backup battery (usually CR2032)
