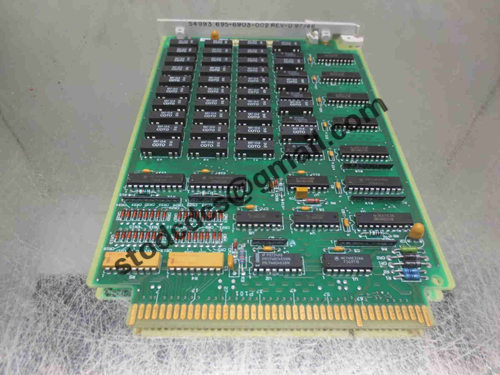

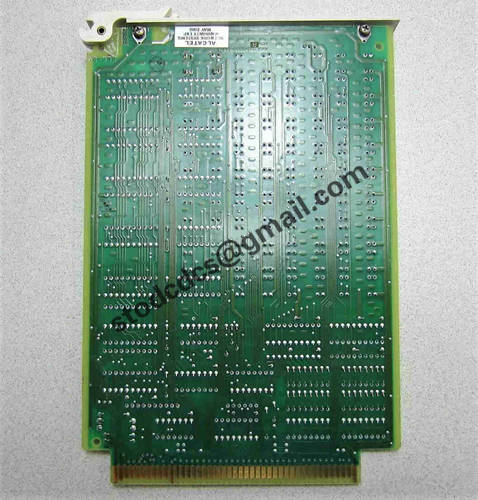

ALCATEL-LUCENT 644-0089-001 interface board

Brand:Alcatel Lucent
Model:644-0089-001
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

ALCATEL-LUCENT 644-0089-001 interface board

Product manual:

1. Product Overview
Model: 644-0089-001

Type: Multi service interface processing board

Positioning: Used for traditional transmission and access equipment of Alcatel Lucent (Nokia), providing mixed service access capability

2. Core functional features
Characteristic Technical Description
Interface types support E1/T1, 10/100BASE-T, STM-1 hybrid access
Business Processing Implementation of TDM to IP Conversion (CESoP)
Clock synchronization supports BIT clock input/output
Protection mechanism 1+1 board level protection switching
Management function supports TL1 and SNMPv2c management
3. Technical parameters
Parameter specifications
E1 port 16xE1 (75 Ω/120 Ω optional)
Ethernet port 4x10/100BASE-T (RJ45)
Optical interface 2xSTM-1 (SFP, 1310nm)
Power consumption 35W (typical value)
Working temperature -5 ° C~55 ° C
4. Typical application scenarios
Traditional network transformation

Realize the migration of TDM voice services to IP networks

Hybrid access for PBX equipment

Mobile backhaul carrier

2G/3G base station Abis interface transmission

Support IMA (Reverse Reuse) function

Enterprise dedicated line access

Provide n × 64k dedicated line services

Support structured E1 (time slot crossover)

5. System compatibility
Compatible devices:

1660 SM/1662 SM

1670 MCC

1680 MGW
