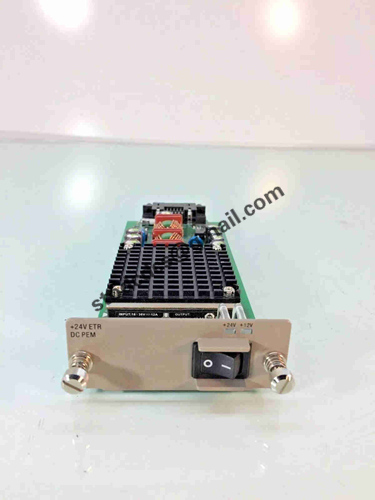

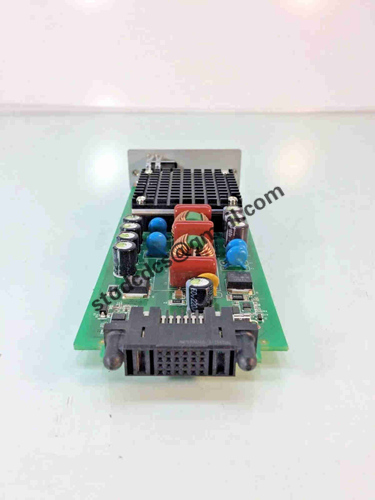

ALCATEL LUCENT 3HE06336AAAA01 interface module

Brand:Alcatel Lucent
Model:3HE06336AAAA01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

ALCATEL LUCENT 3HE06336AAAA01 interface module

Product manual:

ALCATEL-LUCENT 3HE06336AAAA01 Interface Module - Product Description and Application Analysis
1. Product positioning and basic functions
3HE06336AAAA01 is a high-performance interface module from Alcatel Lucent (now Nokia), mainly used for:

Physical layer interface extension: providing multiple rates of optical/electrical interfaces

Protocol conversion: supports interoperability of different network protocols

Signal conditioning: ensuring signal transmission quality and integrity

2. Typical application scenarios
2.1 Optical Transmission Network

Applied to 1830 PSS optical transmission platform

support:

DWDM wavelength conversion

OTN (G.709) interface

100G/200G high-speed transmission

2.2 IP/MPLS Network

Used for 7750 SR router

Function:

10G/40G/100G Ethernet interface

MPLS label processing

QoS policy execution

2.3 5G Carrier Network

Front transmission (eCPRI) and intermediate transmission interfaces

support:

Low latency transmission (<100 μ s)

Accurate time synchronization (1588v2)

3. Technical specifications (typical)
Parameter specifications
Interface type SFP+/QSFP28/CFP2
Rate of 1G-400G configurable
The protocol supports Ethernet, OTN, Fibre Channel
Transmission distance from short distance (100m) to long distance (80km+)
Power consumption<15W (typical value)
4. Industry application cases
Operator Backbone Network: 100G OTN Network Upgrade Project in a Certain Province

Data Center Interconnection: Dual Active Data Centers for the Financial Industry in the Same City

5G construction: deployment of 5G fronthaul network by a certain operator

5. Operation and maintenance management
support:

Real time performance monitoring (optical power, bit error rate)

Remote diagnosis and configuration

Hot swappable replacement (MTTR<5 minutes)
