ALCATEL LUCENT 3HE00229ABAF01 Ethernet module

Product manual:

ALCATEL LUCENT 3HE00229ABAF01 Ethernet module
Brief introduction
3HE00229ABAF01 is an Ethernet module developed by Alcatel Lucent for the 7450 ESS series switching platform, commonly known as IOM-20G (Input/Output Module), primarily used for data forwarding and interface management. This module provides different types of network interfaces by installing multiple types of MDA (Media Dependency Adapter) cards.

2、 Core parameters
Product model: 3HE00229ABAF01

Module type: Input/Output Module (IOM)

Maximum throughput: 20 Gbps

Slot type: MDA card insertion interface

Supported devices: Alcatel Lucent 7450 ESS series

Application function: Control the data flow of the forwarding surface and support Ethernet service interfaces

3、 Application Fields
Telecom operator backbone network and aggregation layer
Used for high traffic and multi service access scenarios, meeting the network architecture requirements of stability and high availability.

Core equipment in metropolitan area networks and enterprise networks
Undertake the task of backbone data exchange, connecting multiple business subnets and remote access points.

Multi service carrier platform
Combined with different MDA card combinations, it provides gigabit/ten gigabit electrical or optical ports and supports services such as VLAN and MPLS.

Data center network access layer
Used as a high-speed data center edge forwarding module, suitable for virtualization and distributed architecture environments.

4、 Product Features
Supports hot swapping

High throughput, low latency

Compatible with multiple MDA cards, allowing for flexible port configuration

Stable and reliable, suitable for high-intensity operating environments

Support software defined network (SDN) architecture extension

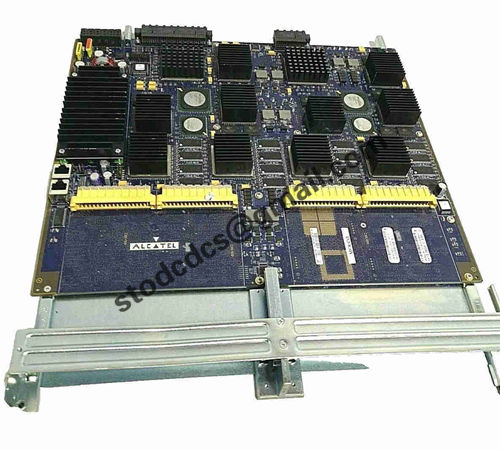

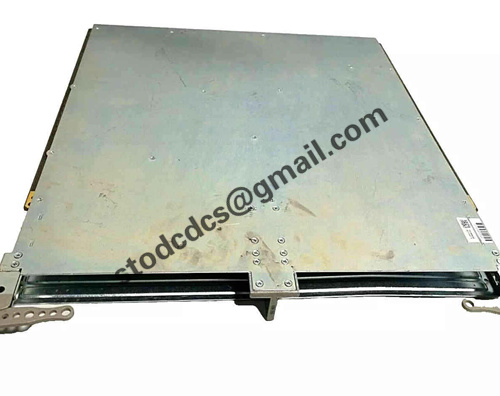

Product details picture:
