ALCATEL LUCENT 3FE61233BA Terminal Card Board

Product manual:

The ALCATEL-LUCENT 3FE61233BA terminal card is from Alcatel Lucent (now Nokia)
A critical hardware module in communication systems, mainly used for processing and transmitting end-user data in access devices.
It belongs to the access layer board card and is widely used in multi service access platforms (such as the ISAM series),
Provide efficient and stable network connections for user terminals.

1、 Product Overview
Project Description
Product model 3FE61233BA
Product Name: Terminal Card/Access Card
Brand manufacturer Alcatel Lucent (Nokia)
System ISAM access platform, OLT equipment, DSLAM system, etc
The main function is to achieve user side data access and processing, as well as data interaction with upper layer devices
2、 Functional Features
Function module description
Multi user access processing supports the access of multiple terminal devices, such as home users and enterprise terminals
Protocol conversion supports the implementation of physical signal conversion and the encapsulation and decapsulation of data protocols
Data forwarding and aggregation centralize, package, and forward end-user data to the upper control board or network side
Signaling and control functions communicate with system control modules for authentication, configuration issuance, link monitoring, etc
The alarm and status indicator board has fault detection and operation status feedback functions, which facilitate system monitoring and maintenance
3、 Application Fields
Application scenario description
Broadband Access Network (FTTx) is used for fiber optic access terminals to connect ONT/ONU devices at the user end
Provide data processing and transmission for DSL users in DSLAM systems
Multi Service Access Platform (MSAP) supports the integration of multiple services such as voice, data, and video
The enterprise park network provides a stable data access channel for enterprise terminals
Smart communities/residential broadband access to a large number of residential user terminals, achieving centralized management

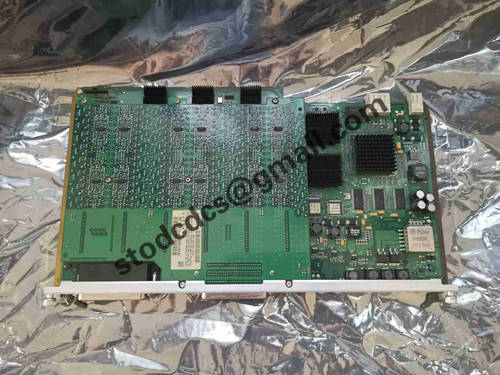

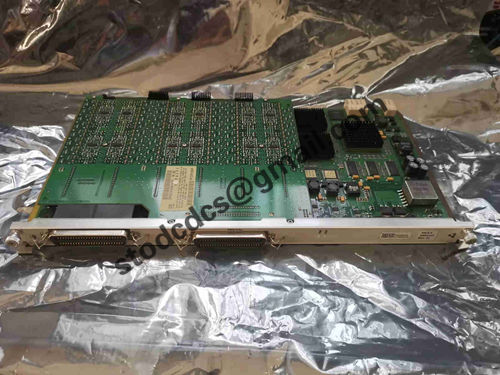

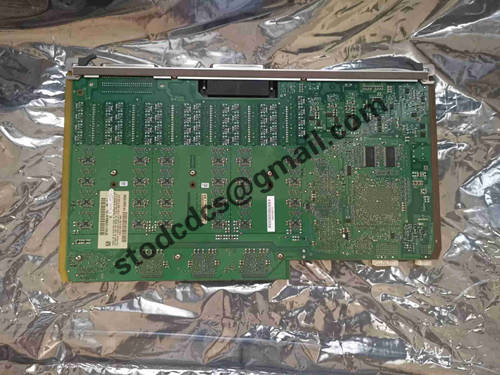

Product details picture:
