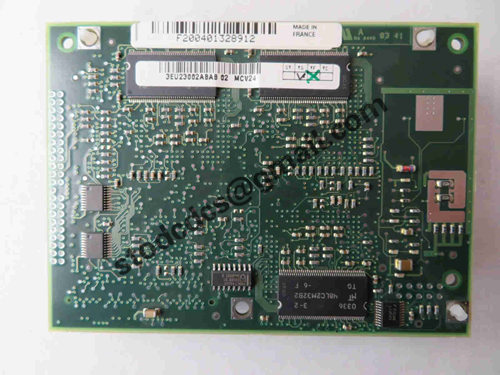

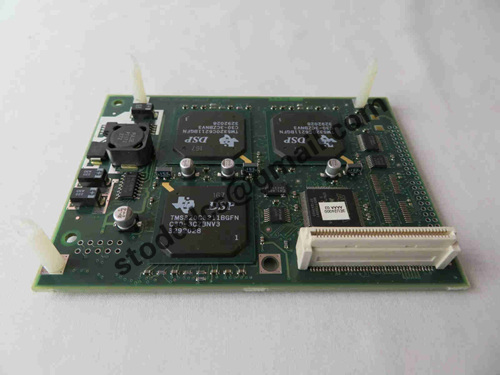

ALCATEL-LUCENT 3EU23012AB Port Module

Brand:Alcatel Lucent
Model:3EU23012AB
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

ALCATEL-LUCENT 3EU23012AB Port Module

Product manual:

1. Product Overview
Model: 3EU23012AB

Type: Multi service optical interface module

Positioning: High density business access for Alcatel Lucent (Nokia) IP/optical network equipment

2. Core functional features
Characteristic Technical Description
Interface configuration: 12xSFP+(10G) or 6xQSFP28 (100G) configurable
The protocol supports Ethernet/IPv6/MPLS/SRv6
Business functions support L2/L3 VPN, QoS policies, ACL filtering
Integrated DOM (Digital Optical Monitoring) function for optical module management
Energy efficient design supports EEE (Energy Efficient Ethernet)
3. Technical parameters
Parameter specifications
Switching capacity 480Gbps (full duplex)
Forwarding performance 360Mpps (64 byte packets)
Power consumption 85W (full load)
Working temperature: 0 ° C~45 ° C (commercial grade)
Transmission distance single-mode 40km (SMF-28)
4. Typical application scenarios
5G carrier network

Used for implementing forward/intermediate transmission bearer in IP-RAN devices

Support FlexE hard slicing (time slot isolation)

Data Center Interconnection

Provide 100G VXLAN tunnel packaging

Support BGP EVPN control plane

Enterprise Core Network

Implement multi tenant business isolation (L2/L3 VPN)

Support SD-WAN edge access

5. System compatibility
Compatible devices:

7750 SR-12/7950 XRS

7250 IXR-e

1830 PSS-32
