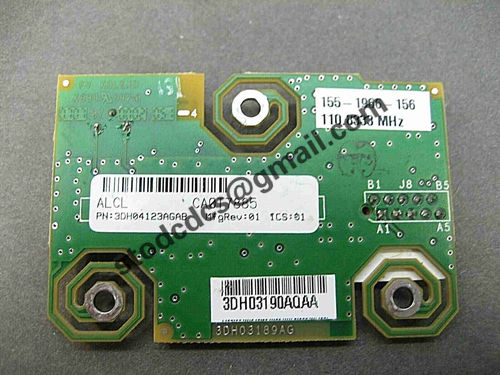

ALCATEL LUCENT 3DH03190AQAA Receiver

Brand:Alcatel Lucent
Model:3DH03190AQAA
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

ALCATEL LUCENT 3DH03190AQAA Receiver

Product manual:

ALCATEL-LUCENT 3DH03190AQAA Receiver Module Technical Description
1. Product Overview
Model: 3DH03190AQAA

Manufacturer: Alcatel Lucent (Nokia subsidiary)

Type: High frequency wireless receiver module

Application areas:

Mobile communication base station system

wireless network infrastructure

Specialized communication equipment

2. Core parameters
Technical specifications
Working frequency band 1800MHz (DCS frequency band)
Receiving sensitivity -121dBm (BER ≤ 2%)
Input impedance 50 Ω
Interface type N-type female head
Supply voltage+28VDC (± 15%)
Working temperature range -40 ° C~+65 ° C
3. Main functions
High frequency signal reception and demodulation

Automatic Gain Control (AGC)

Bandpass filtering and interference suppression

Digital signal preprocessing

Fault self diagnosis and status reporting

4. Typical applications
base station system

As a key component of the BTS receiving link

Used in conjunction with 3DH03164AB transmitter module

indoor distribution system

Used for signal relay receiving unit

Support multi carrier aggregation

Special scenario coverage

Tunnel/subway communication system
