ALCATEL-LUCENT 3CM03285MP exchange board

Product manual:

1. Product Overview
Model: 3CM03285MP

Type: High performance switching matrix board

Positioning: Used for Alcatel Lucent (Nokia) core switching equipment, providing high-capacity data exchange capabilities

2. Core functional features
Characteristic Technical Description
Switching capacity 3.2Tbps full duplex
Forwarding mode based on cell based switching architecture
Delay performance<2 μ s (64 byte message)
Redundant design N+1 load sharing architecture
Expansion capability supports online capacity upgrade
3. Technical parameters
Parameter specifications
Backplane interface 16x200G QSFP-DD
Heat dissipation method: liquid cooling+air cooling mixed heat dissipation
Power consumption 450W (full load)
Working temperature 5 ° C~40 ° C
MTBF >200, 000 hours
4. Typical application scenarios
Core router switching matrix

Used for 7950 XRS core router

Support 400G line card interconnection

Backbone Exchange in Data Centers

Building a CLOS architecture leaf spine network

Support ECMP multi-path load balancing

5G core network carrier

Handling high-speed exchange of UPF user interface

Support network slicing isolation

5. System compatibility
Compatible devices:

7950 XRS-20

7750 SR-1e

Data Center Switching Matrix System

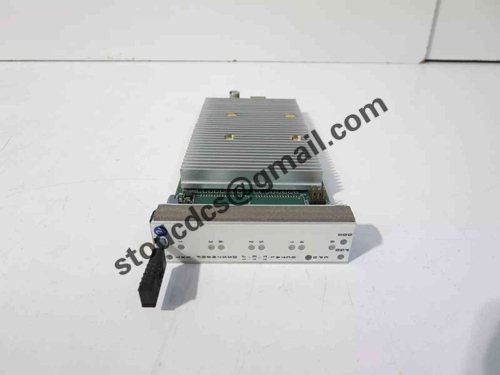

Product details picture:
