ALCATEL LUCENT 3AL86654AAD Control Module

Product manual:

The ALCATEL-LUCENT 3AL86654AAD control module is a core control module used for the Alcatel Lucent communication platform
Usually used for signal processing, data forwarding, and system management in telecommunications networks.

1、 Basic Product Information
Project Content
Product model 3AL86654AAD
Product Type Control Module/Controller
Manufacturer Alcatel Lucent (now Nokia Communication System)
The installation method is usually plug-in and deployed in the main framework of the communication system
Functional system control, signal processing, resource allocation, equipment management, etc
2、 Core functions
The main function of this control module is to provide the following services:
Specific Description of Functional Modules
Central control, as the core control unit of the entire communication system or equipment, coordinates the work between various boards and modules
Hardware resources within the resource management system, including CPU resources, memory, I/O devices, etc
Signal Processing and Routing
Processing signals from different modules for data routing, switching, and scheduling
Equipment monitoring combines hardware and software to provide real-time monitoring and fault diagnosis of the system's operating status
Configuration management supports device configuration and updates, ensuring that the system can be flexibly adjusted as needed
Interface coordination and coordination of various physical interfaces, such as integration and switching of fiber optic, Ethernet, TDM interfaces, etc
3、 Applicable platforms and environments
This control module may be applied to the following devices and platforms:

System Platform Application Scenarios
The ISAM series access platform (such as 7302/7450) provides control, configuration, and management functions for the entire access layer device
IP/MPLS routing devices (such as 7750 SR) manage data flow and interface connections in the routing platform to ensure network layer stability
The optical network access/transmission system manages different optical interfaces and ensures efficient communication between systems

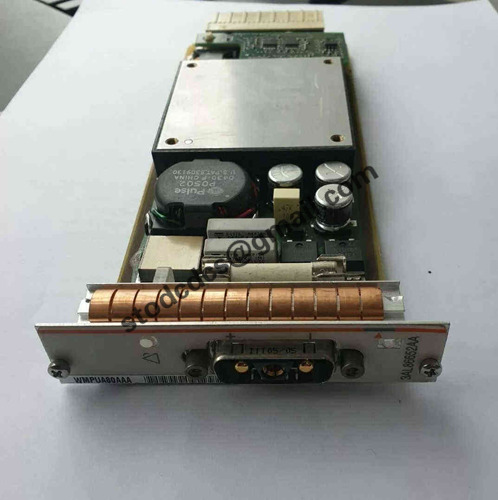

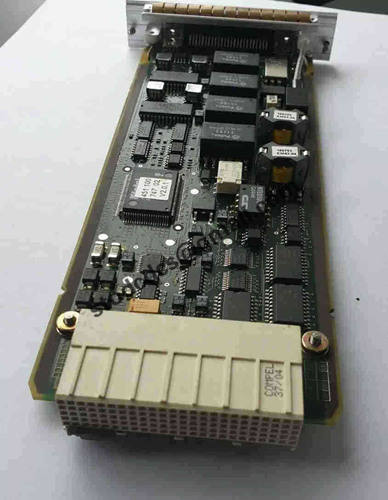

Product details picture:
