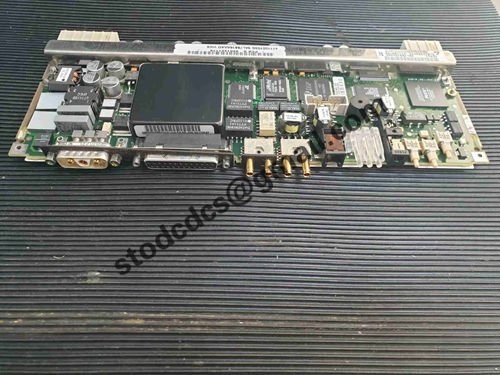

ALCATEL LUCENT 3AL78816AAE Input/Output Module

Brand:Alcatel Lucent
Model:3AL78816AAAE
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

ALCATEL LUCENT 3AL78816AAE Input/Output Module

Product manual:

ALCATEL-LUCENT 3AL78816AAE Input/Output Module - Technical Specifications and Professional Application Guide
1. Product positioning
3AL78816AAE is a Nokia (formerly Alcatel Lucent) multifunctional interface processing module designed specifically for the 7750 SR/7450 ESS series devices, mainly responsible for:

Business access: adaptation to multiple protocol interfaces

Signal conversion: photoelectric medium conversion

Traffic aggregation: Low density to high-density port aggregation

2. Core specification parameters
Characteristic technical indicators
Physical specifications - Size: 235 × 165 × 25mm (single slot position)
-Weight: 1.2kg
Interface configuration -16 × 1G SFP or 4 × 10G SFP+
-2 x 40G QSFP+upstream port (supporting Breakout of 4 x 10G)
Processing capacity - Switching capacity: 160Gbps
-Forwarding latency:< 5 μ s (line speed)
The protocol supports Ethernet/IPv4/IPv6/MPLS/QinQ
Typical power consumption: 45W (full load)
3. Hardware architecture highlights
3.1 Intelligent interface processing

Adaptive speed: 100M/1G/10G automatic negotiation

Media conversion: supports single-mode/multi-mode fiber and copper cable access

Signal Enhancement: Built in Clock Data Recovery (CDR) Circuit

3.2 Traffic Management

Level 8 hardware queue (strict priority+WRR)

Flow based speed limit (accuracy ± 1%)

Storm suppression (configurable threshold)

3.3 Reliability Design

Port level fault isolation

Hot swappable support (MTTR<2 minutes)

Temperature adaptive fan control

4. Typical application scenarios
4.1 Enterprise Network Edge
