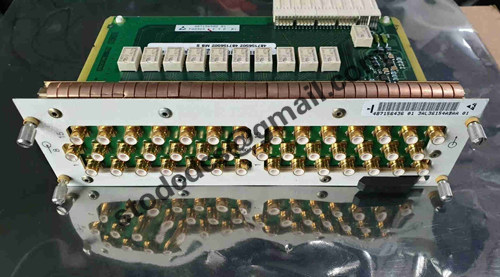

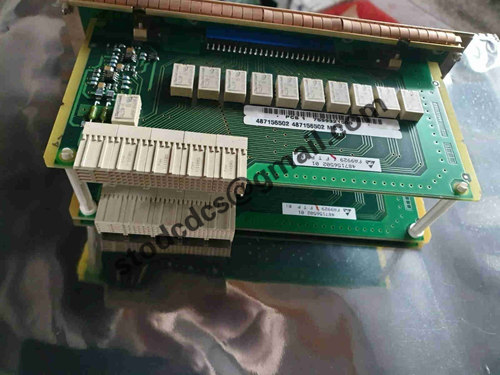

ALCATEL LUCENT 3AL36154ABAA Circuit Board Module

Brand:Alcatel Lucent
Model:3AL36154ABAA
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

ALCATEL LUCENT 3AL36154ABAA Circuit Board Module

Product manual:

The ALCATEL-LUCENT 3AL36154ABAA circuit board module is a specialized functional module used by Alcatel Lucent in telecommunications core equipment, widely used in large-scale transmission, switching, or access equipment systems. Its main task is to process telecommunications signals, convert protocols, or control the interaction of internal system data, which is part of the core board structure.

1、 Basic Information
Project Content
Product model 3AL36154ABAA
Product Name: PCB Module
Manufacturer ALCATEL-LUCENT
Function category: Control/Exchange/Processing module (depending on the system)
Applicable platform Alcatel core communication platform, DSLAM/OLT equipment, transmission system
2、 Core functions (inferred based on conventional series usage)
Signal processing function
Convert, shape, or filter signals from different modules to ensure normal system recognition.

Protocol adaptation/conversion
Support communication protocol conversion (such as ATM/IP, Ethernet, etc.) to enhance system flexibility and compatibility.

System control support
Assist the main control board in performing auxiliary control functions such as system initialization, configuration, and status feedback.

High speed data exchange channel
Provide data exchange interfaces between modules to form a part of the backplane communication bus.

Monitoring and self diagnosis
The board has the functions of running status detection and fault self reporting, which helps the system to quickly troubleshoot.

3、 Technical characteristics
Characteristic category description
Interface type: high-speed telecommunications slot, compatible with Alcatel universal socket structure
Processing capability equipped with dedicated communication processors or FPGA/ASIC
Indicator function board mounted LED indicator light, displaying running/fault status
Compatible with specific communication platforms such as Alcatel S12, ISAM, etc
Structural type plug-in card module, standard industrial design
