ALCATEL LUCENT 3AL34711ABAB Switch Module

Product manual:

The ALCATEL LUCENT 3AL34711ABAB switch module is a functional module used for high-performance data exchange in Alcatel Lucent communication equipment. It is mainly integrated into its core network or access network equipment platform and is used to perform key tasks such as Ethernet switching, backplane data forwarding, and inter board communication coordination.

1、 Basic Product Information
Project Content
Product model 3AL34711ABAB
Product Type Switch Module
Manufacturer Alcatel Lucent (now under Nokia Corporation)
Functional positioning provides high-speed Ethernet switching and data distribution between boards, supporting control, management, and business data flow
2、 Core functions
Multi port Ethernet switching

Provide multiple Gigabit or 10G Ethernet ports, supporting IEEE 802.1Q VLANs QoS、 Port aggregation, ACL and other functions.

Support layer 2 switching and some layer 3 functions (based on software configuration).

Communication bridge between system boards

Connect other functional boards such as controller modules and business processing modules through the device backplane to form the communication bus hub.

Control and Management Integration

Built in processor and embedded software, capable of participating in network topology detection, fault detection, and link recovery control.

Can be used in conjunction with the control board to run management protocols such as SNMP, CLI commands, remote Telnet/Web UI, etc.

Redundancy and hot backup support

Support primary/backup link or dual module redundant working mode to improve network reliability.

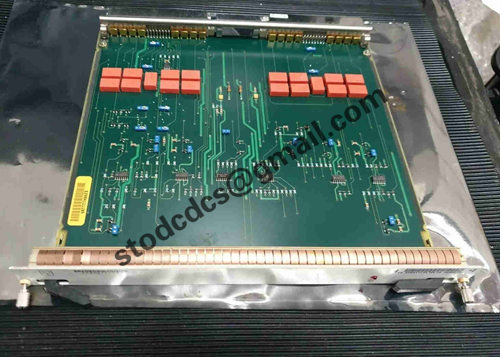

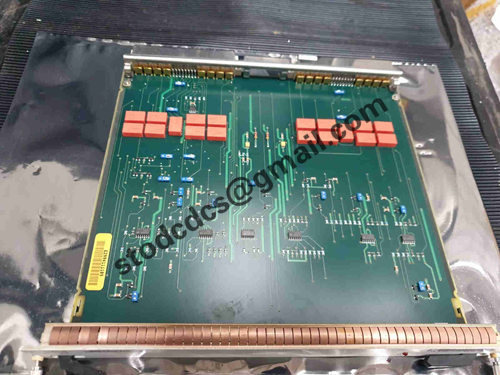

Product details picture:
