ALCATEL LUCENT 3AL34065AAAE Communication Board

Product manual:

ALCATEL LUCENT 3AL34065AAAE communication board is a professional communication interface module used in telecommunications network equipment. It is mainly used in Alcatel Lucent multi service access platforms or transmission devices to perform data and signaling transmission and routing functions, ensuring stable and high-speed communication between the system and external networks.

1、 Basic Information
Product Name: Communication Board/Communication Interface Module

Product model: 3AL34065AAAE

Manufacturer: Alcatel Lucent (now part of Nokia Networks)

Category: Transmission Interface Card/Communication Control Card

Installation method: slot installation, used in conjunction with the main frame

2、 Main functions
Function Type Function Description
Data communication processing enables the transmission, reception, and format conversion of data frames and packets within and outside the communication system
The interface protocol usually supports SDH/SONET, Ethernet ATM、 Communication protocols such as frame relay
Signaling management implements low-level signaling control such as call control, session establishment, channel allocation, etc
Communicate with the main control and collaborate with the main control board (such as the CPU control module) to receive scheduling and commands
The physical port interface board has physical communication ports, which may be optical ports, electrical ports, or dedicated communication interfaces
3、 Application Fields
This board is commonly used in the following telecommunications/data communication systems of Alcatel Lucent:

Application Platform Function Usage
Access network devices (such as ISAM series) perform control/data communication downstream to the user side
SDH/SONET transmission equipment serves as a communication interface or management card for link management
The control layer of the switching system supports tasks such as call processing and terminal access authentication
Synchronize up and down communication between remote terminal/ONU module and central office equipment

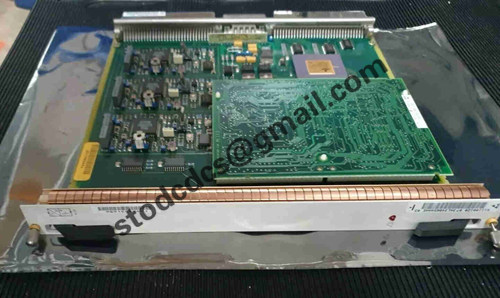

Product details picture:
