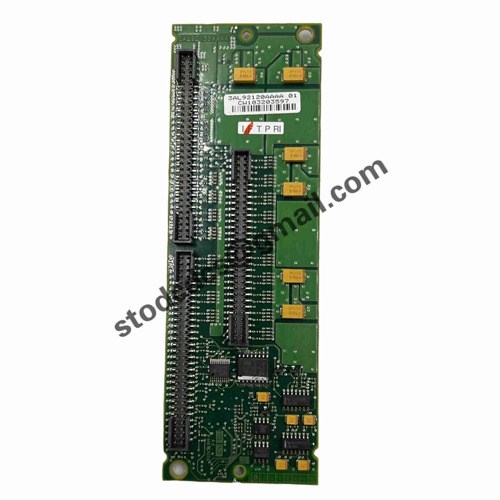

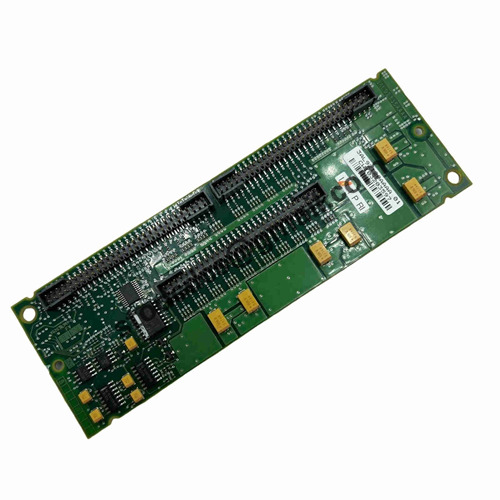

ALCATEL-LUCENT 1AB146950004 Circuit Board Component

Brand:Alcatel Lucent
Model:1AB146950004
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

ALCATEL-LUCENT 1AB146950004 Circuit Board Component

Product manual:

1、 Product Name and Type:
Product model: 1AB146950004

Manufacturer: ALCATEL-LUCENT (now under Nokia Network Business Unit)

Product category: Circuit board components for communication equipment (possibly main control board, interface board, signal processing board, etc.)

2、 Product application areas:
1. Core transmission equipment
Used in Alcatel Lucent's optical transmission systems, such as:

1830 PSS (Optical Packet Switching Platform)

The 1625, 1660, 1692 series optical network devices may perform functions such as optical signal management, data processing, and synchronization control.

2. Broadband access platform
Applied to Multi Service Access Platform (MSAP), such as:

7330 ISAM

In these systems, the circuit boards of the 7450 ESS/7750 SR series are responsible for multiple business access (such as xDSL, GPON, Ethernet) and protocol processing.

3. Core Routing and Switching Platform
be used as:

Control signal distribution board

Network Processing Board (NP)

Line interface boards (LI) are widely deployed in backbone routing equipment to provide high-speed data exchange support for large network systems.

4. Telecom grade data center
The data aggregation layer applicable to telecommunications operators is used for:

High speed data path management

Multiple interface protocol conversions (such as SDH, MPLS, IP, etc.)

Cooperate with the main control unit to achieve equipment collaboration and monitoring

3、 Possible functions (inferred based on the number and application system):
Function category description
Interface processing provides communication ports or protocol processing capabilities (such as optoelectronic conversion)
Signal scheduling for data path selection, scheduling, and switching
System control realizes the main control assistance function and status feedback of equipment
Synchronization/clock management provides precise clock synchronization signal processing and distribution
Fault diagnosis provides self checking function or cooperates with the main control system to complete alarms
