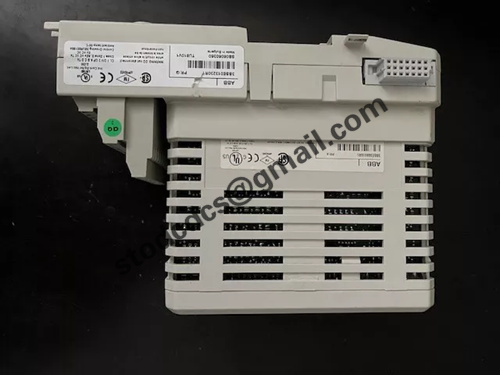

AI810 Analog Input Module

Brand:ABB
Model:AI810
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

AI810 Analog Input Module

Product manual:

AI810 is an analog input module produced by ABB, belonging to the S800 I/O series, used for analog signal acquisition in process automation and industrial control systems. This module is capable of processing current (mA) or voltage (V) signals and is widely used for data acquisition in devices such as sensors and transmitters.

main features
8 analog input channels, supporting multiple signal types.

Supports current/voltage input and is suitable for various industrial sensors.

High precision A/D conversion ensures the accuracy of data acquisition.

Fault detection function, including wire breakage detection, improves system reliability.

Compatible with ABB S800 I/O system, easy to integrate into DCS control systems such as AC 800M.

technical specifications
Input type:

Voltage mode: ± 10V

Current mode: 0/4-20mA

Number of channels: 8 independent input channels

Resolution: 12 bit A/D conversion

Scanning time: 2ms/channel, supports fast data updates

Installation method: DIN rail or rack installation

Isolation protection: Electrical isolation between channels and systems to improve anti-interference ability

application area
Industrial automation: Collecting sensor data such as temperature, pressure, flow rate, etc.

Power system: Monitor important parameters such as current and voltage.

Petrochemical industry: used for process control and improving production efficiency.

Water treatment industry: used for flow and liquid level monitoring, optimizing water resource management.

AI810 has high precision, reliability, and flexibility, and is widely used for data acquisition tasks in industrial control and process automation systems.
