ABB YPO104 Digital Output Board

Product manual:

Main functions and features
Multi channel digital output
Provide multiple independent digital output channels and support simultaneous control of multiple external devices.
Each channel can be operated independently, with high flexibility.
Signal driven capability
Supports multiple output voltage levels (such as 24V DC).
Can drive relays, solenoid valves, and other digital input devices.
High reliability design
The output channel has overload protection function, effectively avoiding equipment damage.
Equipped with status indicator lights to display the working status of each channel.
Isolation protection
Channel to channel and ground electrical isolation enhance the system's anti-interference ability.
Ensure stable operation in harsh industrial environments.
Diagnostic function
Support channel level fault detection, such as short circuit and overcurrent alarms.
Provide real-time monitoring to improve maintenance efficiency.
technical specifications
Parameter details
Number of output channels: 16 channels or higher
Output voltage range 24V DC (typical value)
The maximum output current per channel is 500 mA (depending on the specific model)
Isolation voltage channel and channel/ground 500V
Response time<5 milliseconds
Working temperature range -20 ° C to+70 ° C
Installation method: DIN rail or rack mounted installation
Size standard module size
application area
industrial automation
Used to control actuators, alarms, and other digital devices on the production line.
process control
The switch equipment in the drive control system is suitable for scenarios such as petrochemicals and power plants.
Building automation
Control lighting, access control, and security equipment.
Intelligent Manufacturing
Integrated into the control system of the production line to achieve high-precision digital signal output.

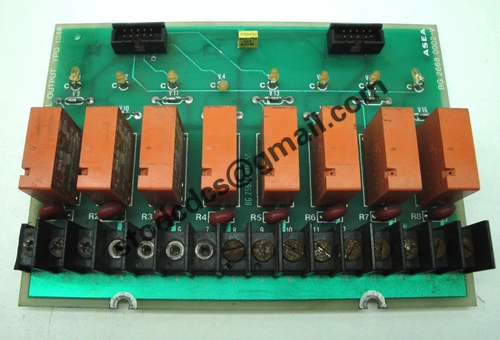

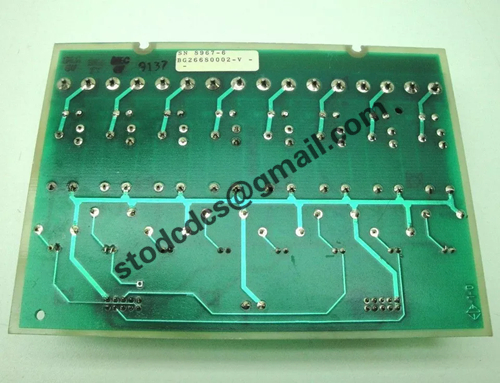

Product details picture:
