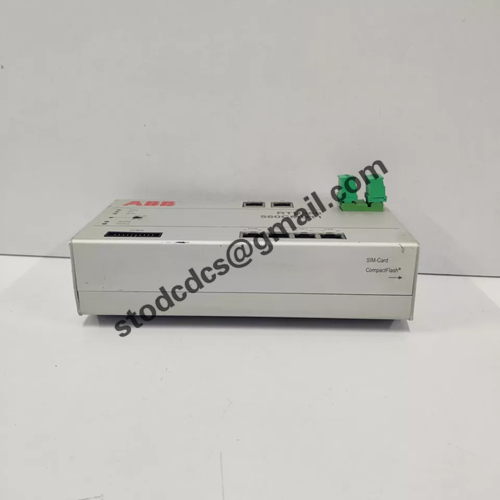

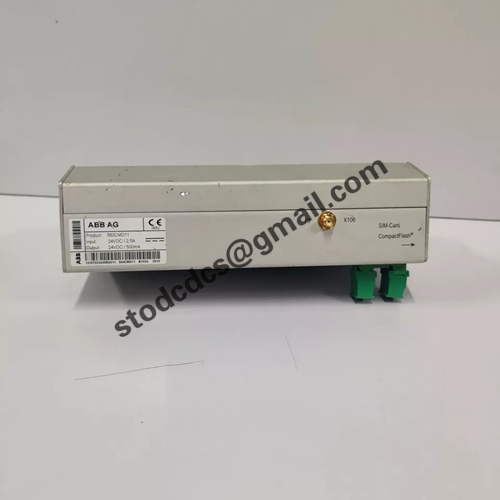

ABB RTU560 560CMD11 communication unit

Brand: ABB
Model: RTU560 560CMD11
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

ABB RTU560 560CMD11 communication unit

Product manual:

ABB RTU560 560CMD11 is an ABB RTU560 Remote Terminal Unit (RTU)
A communication module in the series, mainly used for industrial automation, energy management
Power dispatch and substation automation system (SAS).
It provides multiple communication protocols and supports remote monitoring and data acquisition (SCADA)
And efficient data exchange with the main station or other intelligent electronic devices (IEDs).
1. Product Overview
manufacturer: ABB
Product series: RTU560
Model: 560CMD11
Equipment type: Communication Unit
Main functions:
As the communication interface of the RTU560 system, it provides remote and local communication capabilities
Supports multiple protocols (IEC 60870-5-101/104, DNP3, Modbus, PROFIBUS, etc.)
Data collection and processing can be integrated into SCADA or EMS (Energy Management System)
Compatible with other I/O, control, and interface modules of RTU560
2. Main technical parameters
Parameter specifications
Supply voltage 24V DC or 48V DC (depending on configuration)
Typical power consumption: 5W-10W
Communication interface Ethernet (RJ45), RS232, RS485, fiber optic interface
Supporting protocol IEC 60870-5-101/104 DNP3、Modbus、PROFIBUS、OPC
I/O supports expandable DI DO、AI、AO
Installation method: Rack mounted/DIN rail
Environmental temperature -25 ° C to+70 ° C (industrial grade)
Protection level IP20 (suitable for use inside control cabinets)
Compatible with ABB RTU560 and other industrial communication equipment
