ABB RED670 display panel

Product manual:

The ABB RED670 display panel is an important component of ABB's protection and control equipment, and is part of the RED670 differential protection device series. It is used to display the operating status, parameter information, and fault records of the device, providing an intuitive user interface.
Overview of RED670 Display Panel Functions
Real time monitoring:
Display real-time device operation status and protection function status.
Provide operational parameters of the power grid, such as current, voltage, power, frequency, etc.
Event record:
Display historical events and fault records.
Support timestamp to help users quickly locate and analyze faults.
Alarm prompt:
Notify equipment abnormalities through visual or audible alarms.
Indicate protection start, trip or other status information.
User interaction:
Allow users to set parameters and select modes through the panel.
Equipped with function keys and navigation keys for easy operation.
Intuitive display:
Equipped with a high-resolution display screen, displaying clear text, charts, and warning signs.
The interface layout can be customized according to user needs.
Physical characteristics of display panel
Characteristic Description
Screen type: LCD or high brightness LED display screen
Button layout, physical buttons or touch support
Language support for multiple languages, including English and Chinese, etc
Standardized dimensions for easy integration and installation of the front panel
Clear distribution of indicator lights such as status lights and alarms

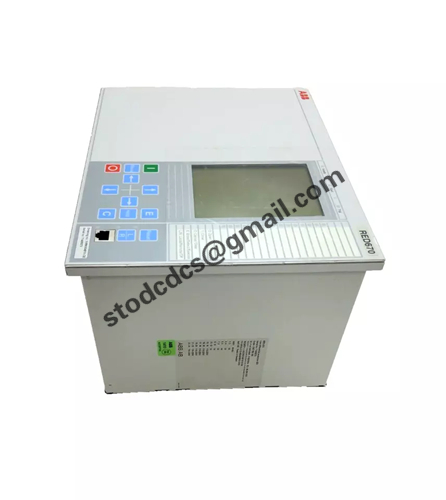

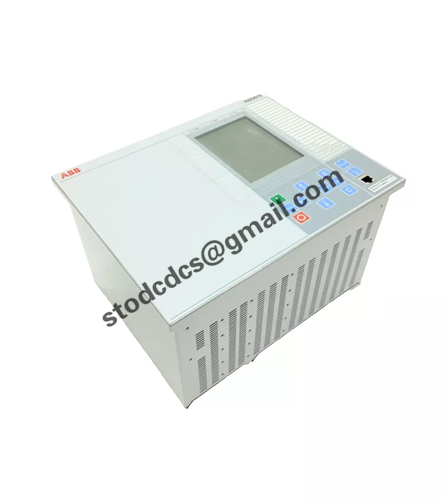

Product details picture:
