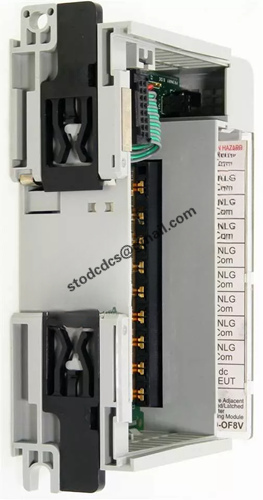

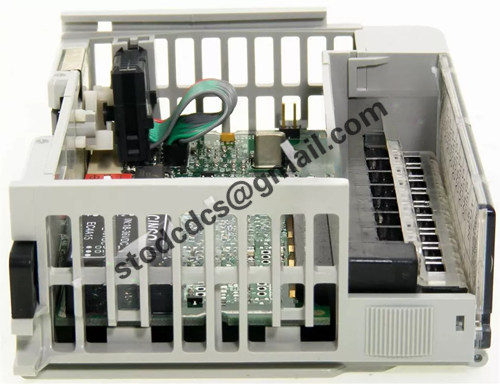

A-B 1769-OF8C current module

Brand: A-B
Model: 1769-OF8C
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

A-B 1769-OF8C current module

Product manual:

The Allen Bradley model 1769-OF8C is an analog output module used in CompactLogix control systems, providing eight single ended current output channels.
Main features:
Output range: Each channel can be configured for 0-20 mA or 4-20 mA output.
Resolution: 16 bit analog-to-digital converter (DAC) ensures high-precision output.
Conversion rate: The conversion rate of all channels is 5 milliseconds, and the step response for 63% output is less than 2.9 milliseconds.
Working temperature range: 0 to 60 degrees Celsius.
Power requirements: External DC power supply, voltage range 20.4 to 26.4 volts, minimum current 60 milliamps.
Output impedance: greater than 1 ohm, with short-circuit protection.
Size: Approximately 118mm x 35mm x 87mm.
Application areas:
This module is widely used in the field of industrial automation, especially in applications that require precise analog signal output, such as chemical,

petroleum, natural gas, pharmaceutical, energy and other industries.
