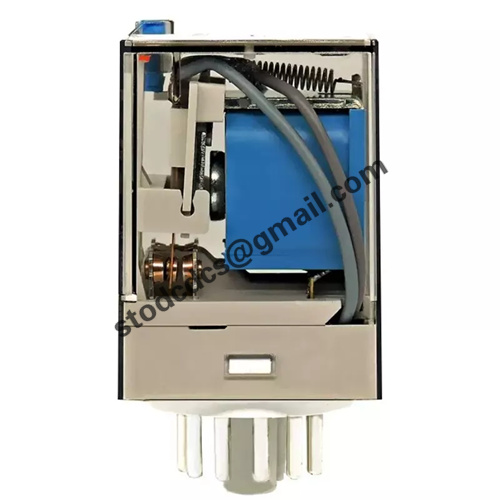

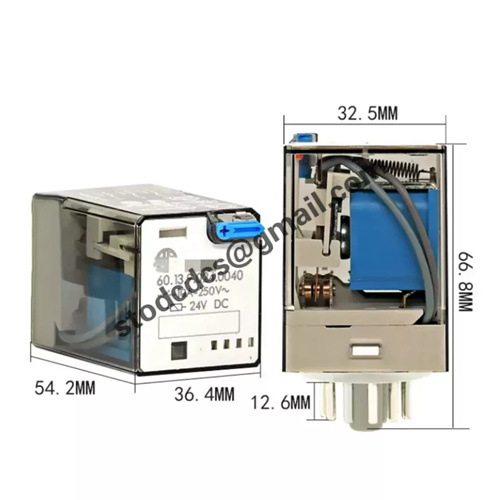

60.13.9.024.0040 Power Relay

Brand:ABB
Model:60.13.9.024.0040
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

60.13.9.024.0040 Power Relay

Product manual:

60.13.9.024.0040 is an industrial grade power control relay, belonging to the category of multifunctional combination relays. This model adopts a modular design, integrating power switching and signal isolation functions, designed specifically for automation control cabinets and power distribution systems.

2. Key parameters
Parameter specifications
Rated voltage 24V DC (control end)/230V AC (load end)
Contact capacity 16A @ 250V AC (resistive load)
Contact form 2 sets of conversion contacts (SPDT)
Isolation voltage 4000V AC (input-output)
Response time suction ≤ 15ms/release ≤ 10ms
Mechanical lifespan 10 times
Installation method: 35mm DIN rail
Protection level IP40 (front panel)
3. Core Features
Dual redundant control: supports automatic switching between primary and backup power sources

LED status indicator: power/action dual color display

Wide voltage input: Control terminal 18-30V DC adaptive

Security certification: UL508/EN61810-1

Seismic design: able to withstand mechanical vibrations of 5-15Hz

4. Typical application scenarios
Uninterruptible Power Supply (UPS) Switching

Generator grid connection control

Dual power supply system for industrial equipment

Safety circuit isolation control
