3BHE043536R0001 Analog Input/Output Module

Product manual:

Main features:
Input/output signal type:
Analog input:
Supports receiving various types of analog signals, such as 4-20 mA, 0-10 V and other standard signals.
Data can be obtained from devices such as sensors and transmitters.
Analog output: can output signals similar to 4-20 mA or 0-10 V,
Used to control actuators, valves, or other equipment.
Wide range of operating voltage: supports a wide range of operating voltages,
It can usually operate normally at 24V DC, 48V DC, or other standard industrial voltages.
Application areas:
Process control: In the process control industries such as chemical, pharmaceutical, power, oil and gas,
By collecting data from sensors and outputting control signals, it helps to adjust various parameters during the process.
Accurately control each link in the production process.
For example, sensors monitor temperature, liquid level, pressure, etc,
The module collects data and feeds it back to the control system, controlling the actuators to make adjustments.
Intelligent Building Control: In intelligent building systems, this module can be used for HVAC
The control of temperature, humidity, airflow and other parameters in HVAC systems,
Ensure the comfort level of the building environment.
Testing and Measurement Equipment: Modules can also be applied to testing instruments and equipment
Transmit the collected analog signals to a data logger or upper computer,
Conduct further analysis and processing.
Energy Management System:
In energy management and monitoring systems, the analog input module is responsible for collecting current
Voltage, power and other signals help monitor and optimize energy consumption in real-time.
Technical specifications (typical):
Input signal type: 0-10 V, 4-20 mA (configurable)
Output signal type: 0-10 V, 4-20 mA (configurable)
Resolution: High resolution A/D and D/A conversion, typically 12-16 bits
Working voltage: 24V DC (common), depending on the application
Response time: usually less than 50ms (depending on the application scenario and configuration)
Electrical interfaces: terminal connections, slot card interfaces, etc
Anti interference: Complies with industrial EMC (electromagnetic compatibility) standards
Communication interfaces: such as Modbus, Profibus, Ethernet/IP, etc., depending on the application system

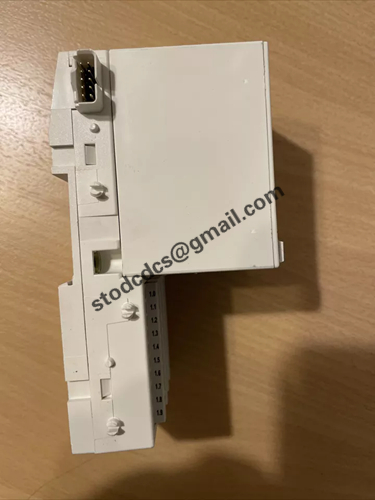

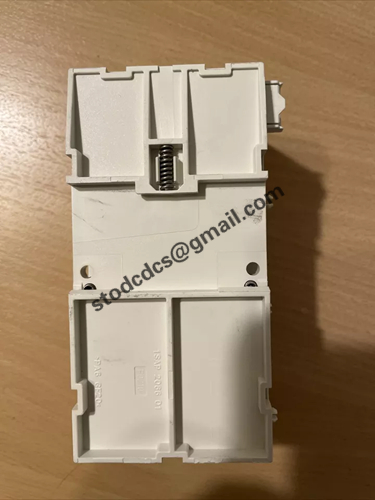

Product details picture:
