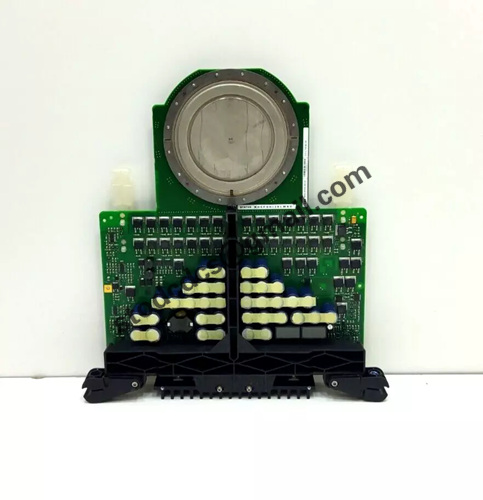

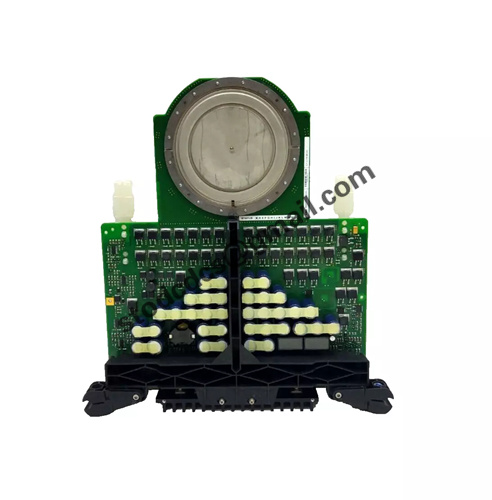

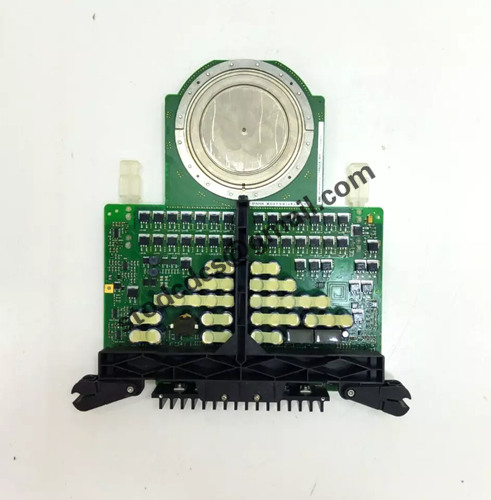

3BHE009681R0101 GVC750BE101 thyristor module
Brand: ABB
Model:3BHE009681R0101 GVC750BE101
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
3BHE009681R0101 GVC750BE101 thyristor module
Product manual:
Basic Product Information
Product Name: 3BHE009681R0101 GVC750BE101 Controllable Silicon Module
Manufacturer: ABB (Alstom)
Type: Controllable silicon module (SCR module)
Application areas: power control systems, industrial drives, power regulation, frequency converters, motor speed regulation, power electronic equipment, etc.
main features
High power control capability:
This module is designed to handle high-power currents and is widely used in high-power power regulation, rectification, and variable frequency speed regulation fields.
High reliability and durability:
By using high-quality semiconductor materials and advanced manufacturing processes, the module can ensure long-term stable operation in harsh industrial environments.
Low switching loss:
By adopting low switching loss technology, energy loss can be reduced, thereby improving the overall efficiency of the system.
Good heat dissipation performance:
The heat dissipation design takes into account the requirements for high-power processing of modules, is suitable for high load environments, avoids overheating, and ensures continuous and stable operation.
Protective function:
Built in safety features such as short circuit protection, overload protection, and over temperature protection ensure the safe operation of the module in unstable power environments.
technical specifications
Rated voltage:
The working voltage supported by this module is usually between 600V and 1200V, which varies depending on the specific model.
Rated current:
The maximum working current can reach several hundred amperes (A), suitable for high-power load control.
Switching frequency:
The high switching frequency design supports efficient power regulation and is suitable for dynamic load control.
Heat dissipation requirements:
This module usually needs to be installed with a suitable heat sink system to ensure good heat dissipation performance and stable operation.
Working temperature range:
The working temperature range is usually -40 ° C to+125 ° C, ensuring reliability in extreme environments.
