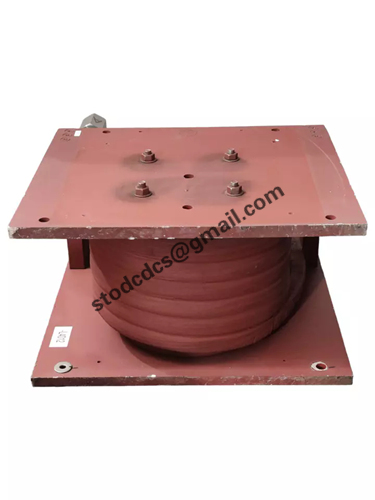

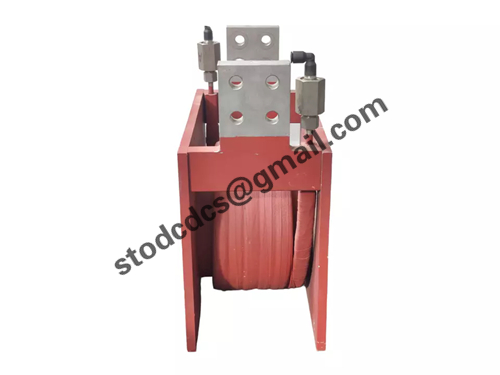

3BHB009181P0001 Reactor

Brand:ABB
Model:3BHB009181P0001
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

3BHB009181P0001 Reactor

Product manual:

3BHB009181P0001 is a power electronic reactor produced by ABB, mainly used in industrial frequency converters, new energy converters and other systems to achieve current smoothing, harmonic suppression and energy buffering functions. The following is a detailed technical analysis:

1. Basic product information
Model: 3BHB009181P0001 (ABB material number)

Type: Iron core/hollow core reactor (specific type to be confirmed)

Brand: ABB (Global Leader in Power and Automation)

Typical applications:

Inverter input/output filtering

DC side smoothing of photovoltaic/wind power converters

Harmonic Control of Industrial Power Supply

2. Core functions and features
✅ Current smoothing: Suppressing di/dt mutations and protecting IGBT modules
Harmonic suppression: reduces THD (total harmonic distortion) and complies with IEEE 519 standard
✅ Energy buffering: stabilizing DC bus voltage during transient processes
✅ High reliability:

Insulation Class: Typically Class H (180 ° C)

Protection level: IP00 (to be installed inside the electrical cabinet) or IP54 (outdoor type)

3. Typical application scenarios
(1) Industrial frequency converter system (such as ABB ACS880)
Input reactor:

Suppress harmonics on the grid side (such as 5th and 7th order)

Limit the starting impulse current

Output reactor:

Reduce overvoltage at the motor end driven by long cables

(2) New energy generation
Photovoltaic inverter: DC side smoothing reactor

Wind power converter: grid side filtering reactor

(3) Power quality management
Filter Reactor in SVG/SVC System

Input harmonic suppression of industrial UPS
