IC3650SGDB1 control board

Product manual:

Functional Features
Signal processing and control:
Collect input signals from sensors, execute logical control, and output control instructions.
Modular design:
Easy to integrate and replace, suitable for complex industrial control requirements.
High reliability:
Designed for long-term operation, high temperature resistance, vibration resistance, and suitable for harsh environments.
Data communication:
May support data exchange with other modules or upper computers, providing status feedback for the control system.
Protection function:
Contains circuit protection mechanisms, such as overcurrent, overvoltage, or short-circuit protection, to ensure the safe operation of the system.
Technical specifications (may include the following parameters)
Power supply requirements:
Working voltage: usually 5V, 12V or 24V DC.
Power consumption: Please refer to the product manual for specific values.
Interface type:
Multi pin interface is used for signal input and output.
Terminal interfaces or slots are used for module connections.
Circuit composition:
This may include analog signal processors, microcontrollers, driver circuits, and protection circuits.
Operating environment:
Working temperature:- 20 ° C to+70 ° C.
Relative humidity: 5% to 95% (without condensation).
Physical dimensions:
Compliant with industrial standard dimensions, convenient for rack or control cabinet installation.
application area
Energy industry:
Used in turbine control systems to achieve precise control of parameters such as speed, temperature, and pressure.
Industrial automation:
Provide automation and logic control functions in large factory equipment.
Communication system:
It may serve as an interface board to connect external devices for data collection and transmission.
Monitoring and Protection:
Real time monitoring of system operation and timely response to abnormal situations

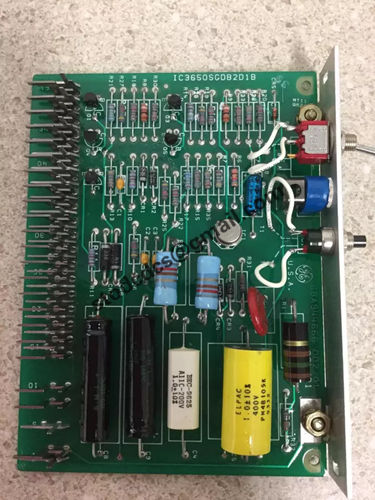

Product details picture:
