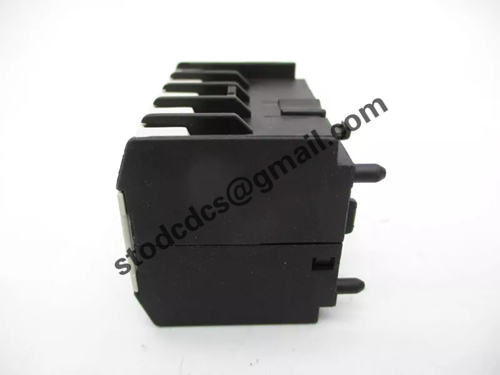

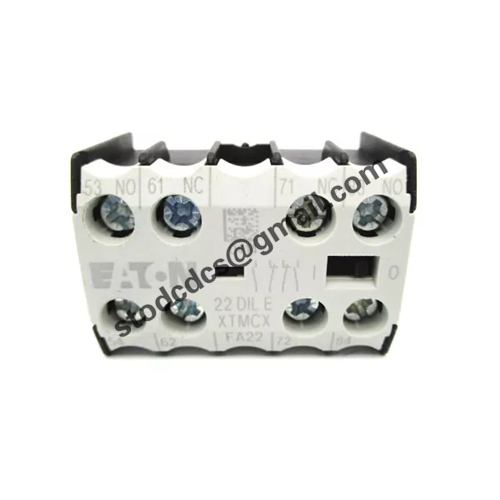

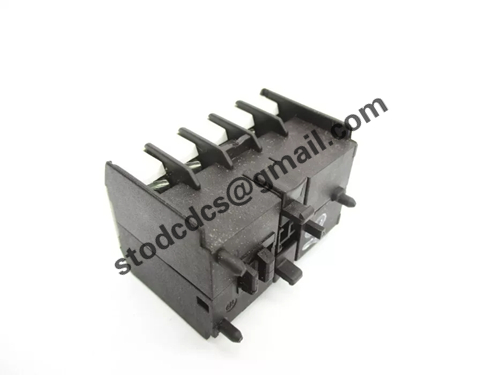

22DILE auxiliary contactor

Brand:ABB
Model:22DILE
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

22DILE auxiliary contactor

Product manual:

22DILE is an auxiliary contactor produced by Eaton, mainly used for signal transmission and circuit switching in electrical control systems. It is usually used in conjunction with the main contactor or relay to achieve remote control, logic control, and status indication.

main features
Auxiliary control: used to control auxiliary circuits outside the main circuit, such as indicator lights, solenoid valves, etc.

Modular design: Compatible with Eaton's DIL series contactors for easy expansion.

Compact structure: suitable for installation in narrow spaces, supports DIN rail installation.

technical specifications
Rated voltage: 24V, 110V, 230V AC/DC (depending on the model).

Contact configuration: 2 normally open (NO)+2 normally closed (NC).

Rated current: generally 10A, suitable for low-power control circuits.

Installation method: DIN rail or screw installation.

application area
Industrial automation: Used for auxiliary circuit control of PLC and relay control systems.

Power system: used for switching status signals in electrical cabinets and distribution systems.

Mechanical equipment: controls start/stop signals and assists in the operation of the main contactor.

The 22DILE auxiliary contactor has a compact structure and stable performance, and is a common component in industrial and commercial electronic control systems.
