ABB 3BHE022291R0101 Automation control module

Product manual:

Structure form:
The structural form of this module may be different from other types of control modules, but specific details are not provided.
Communication and I/O functions:
3BHE022291R0101 PCD230A is a communication input/output module commonly used in industrial automation control systems.
It can process both digital and analog signals and provide a communication interface.
Control function:
The PCD230A101 3BHE022291R0101 Excitation controller is a high-performance, programmable device for controlling motor excitation.
It enables high precision measurement and control, and has a built-in diagnostic function for easy maintenance.
Hardware design:
The series features a rugged design that supports a wide range of power inputs from DC 9 to 36V.
With ignition control and remote power switch.
Provides 80V surge protection, over voltage protection (OVP), Under voltage protection (UVP), over current protection (OCP) and reverse protection.

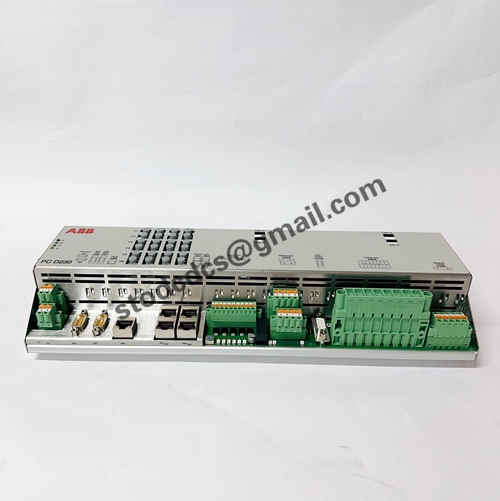

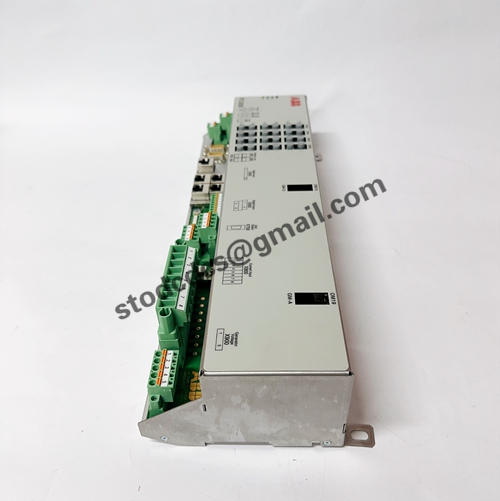

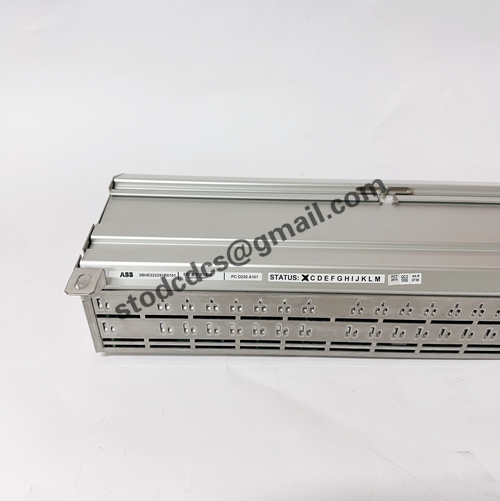

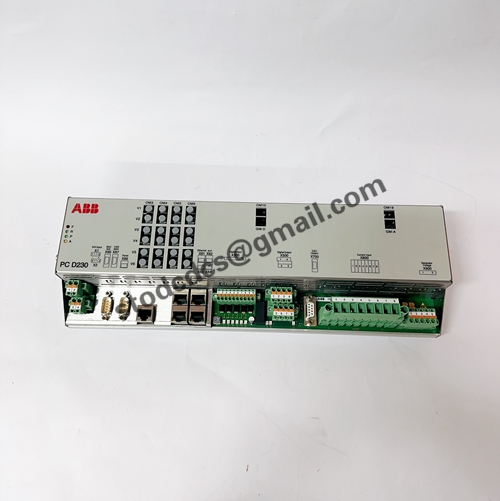

Product details picture:
