193X701CEG01 Linear Timing Card

Product manual:

This module is an industrial grade time delay control module from General Electric (GE), mainly used for automation or power protection systems that require precise time control.

1. Model analysis and functional positioning
Possible meanings of 193X701CEG01:

193X → GE product series (such as power protection, industrial control).

701 → Function code (may represent time control function).

CEG01 → Version identification (possibly optimized for accuracy or anti-interference capability).

Core functions:

Accurate time delay (adjustable from 0.1s to 100s).

Sequential logic control (used for device start/stop sequence control).

Protection system delay (such as overload delay tripping, motor soft start control).

2. Typical application scenarios
(1) Power system protection
Delay tripping of circuit breaker

Provide adjustable delay in GE Multilin protective relays to avoid misoperation.

Used for overcurrent protection and automatic reclosing control.

Backup power switch

Control the delayed switching of ATS (Automatic Transfer Switch) to ensure the stability of the power grid.

(2) Industrial automation (PLC/DCS system)
Sequential motor start-up

In multi motor systems, avoid starting simultaneously to prevent current surges (such as water pump/fan control).

Process control

In the chemical and metallurgical industries, it is used for time sensitive processes such as heating and cooling.

(3) Mechanical equipment timing control
Wind power variable pitch system

Control the soft start time or fault recovery delay of the pitch motor.

Rail Transit Signal System

Used for switch switching and signal timing management.

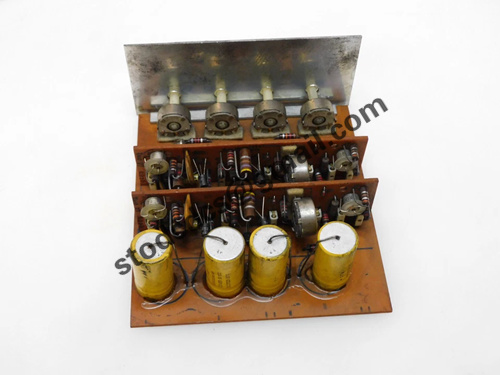

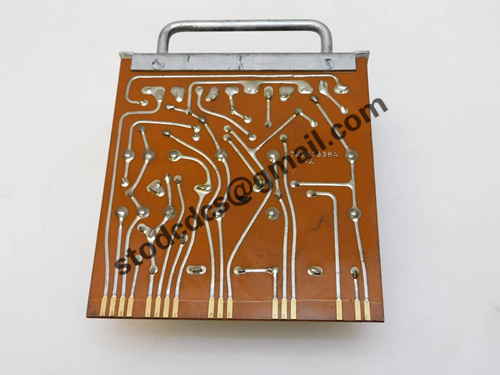

Product details picture:
