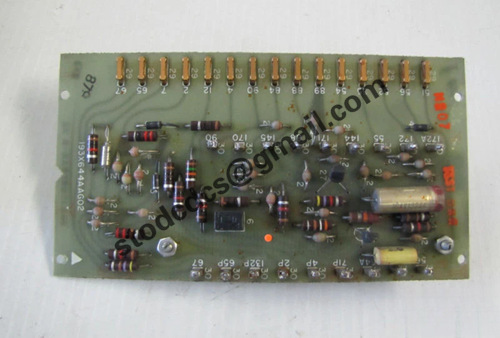

193X644AAG02 DC motor drive board

Brand:GE
Model:193X644AAG02
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X644AAG02 DC motor drive board

Product manual:

GE 193X644AAG02 is a modular drive board designed specifically for controlling DC motor drive systems, widely used in industrial automation equipment, power control systems, and mechatronics devices. This board has high reliability, high response speed, and precise speed regulation capability, suitable for occasions with high requirements for motor starting, speed regulation, braking, and forward/reverse control.

Technical Parameter
Power supply voltage: 24V DC or ± 15V (depending on system configuration)

Drive current: Supports DC motors with a controlled power range of 0.5kW to 10kW

Control mode: PWM control/analog signal control

Response time:< 1ms

Signal interface: Standard 193X gold finger edge connector

Cooling method: natural air cooling/system cooling

Core functions
DC motor drive control: achieve precise voltage and current regulation, control motor start stop, speed regulation, and steering;

Speed and current closed-loop control: capable of receiving speed measurement signals (Tacho) for closed-loop speed regulation, achieving stable operation;

Soft start and acceleration/deceleration function: improves system stability and reduces startup shock;

Reverse control and braking control: with fast braking capability, suitable for repeated start stop operations;

Overload and overcurrent protection function: The onboard protection logic can prevent damage caused by abnormal loads.

application area
industrial automation control system

Crane and conveyor drive system

Steel rolling, elevator, mining machinery control system

DC drive systems in power plants and large electrical equipment

Upgrade and Replacement Plan for Old Drive Systems
