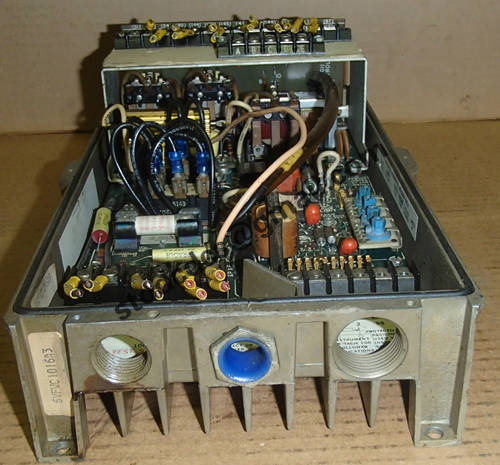

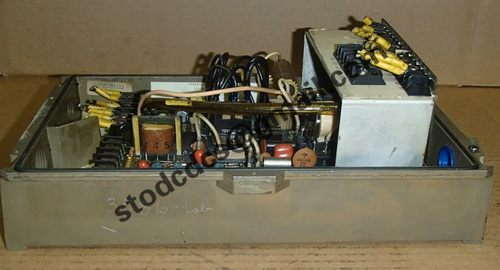

193X643ABG110 power module

Brand:GE
Model:193X643ABG110
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X643ABG110 power module

Product manual:

GE 193X643ABG110 is a high reliability power supply module in the General Electric 193X series control system
Mainly provides stable DC power supply for multiple circuit boards in the control system.
This module is widely used in industrial automation systems, power generation control systems, and large-scale electromechanical equipment.

Basic parameters
Model: 193X643ABG110

Name: Power Supply Module

Manufacturer: General Electric (GE)

Series affiliation: GE 193X series control system module

Main function: Provide multiple stable DC power sources for various control modules in the system

Typical output voltage:+5V, ± 15V, 24V DC (depending on configuration)

Input voltage range: 85-264V AC or 110V/220V AC (please refer to the nameplate for details)

Frequency range: 47~63Hz

Maximum output power: approximately 50~150W depending on the load

Working temperature range: -20 ° C to+70 ° C

Installation method: slot type (standard 193X card structure)

Functional Features
Multi channel output: The module supports multiple output channels, which supply power to the control board, signal board, relay board, etc.

Excellent voltage stabilization performance: equipped with voltage stabilization and load adjustment functions, suitable for different working conditions.

Short circuit/overcurrent/overvoltage protection: The output terminal has multiple protection mechanisms to prevent damage to other modules of the system.

Electromagnetic interference suppression: Built in EMI filter to reduce interference with surrounding devices.

Self diagnostic indicator: equipped with LED status indicator light for easy on-site maintenance.

Modular structure: supports hot swappable replacement, facilitating maintenance and upgrades.

application area
GE Mark series control systems (such as Mark II/IV)

Thermal power plant/nuclear power plant control center

Large industrial motor control system

Automation control platforms for metallurgy, petrochemicals, pharmaceuticals, and other industries

Power supply unit of process control DCS system
