193X637ACG04 Statistical Board
Brand:GE
Model:193X637ACG04
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!
Details
193X637ACG04 Statistical Board
Product manual:
Technical parameters and functional characteristics
Product model: 193X637ACG04
Product Name: Statistical Board
Function type: Running status counting, data statistics, and output
Typical application functions:
Accumulated running time statistics
Start/stop count
Record of the number of occurrences of faults
External signal pulse counting and triggering logic
Input signal type: pulse signal/digital signal (TTL or 24V logic)
Output signal types: counter output, comparison signal, status flag bit, etc
Counting range: usually supports a counting depth of 16 bits or higher (depending on the chip model)
Clock control: onboard or external clock synchronization control
Onboard components: logic ICs (such as counters, latches), transistors, capacitors, resistors, LED indicators, etc
Working voltage:+5V/± 15V DC (powered by the system)
Status indication: equipped with status lights (LED) to display statistics or trigger status
Connection method: Gold finger slot interface, suitable for GE control system backplane
Working temperature range: -20 ° C~+70 ° C
Size standard: Complies with GE 193X series control system module specifications
function
Real time statistics and recording of various operating states in the system
Provide statistical output of the number or frequency of start/stop signals
As a data support module for the upper computer or monitoring system
After triggering a certain counting threshold, output control signals for interlocking protection or maintenance reminders
Can be linked with the alarm module to achieve periodic maintenance reminder function
Application scenarios
GE Mark II/Mark IV Industrial Control System
Statistics/Counting Unit in Automation Control System of Thermal Power Plant
Management of Start Stop Records for Large Motors
Collection of operational status information on industrial sites
Operation monitoring and maintenance cycle management of process control system

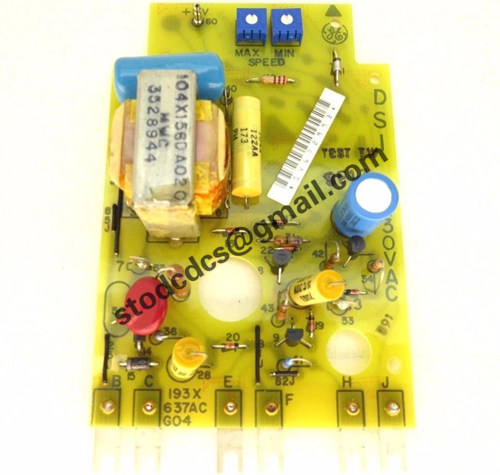

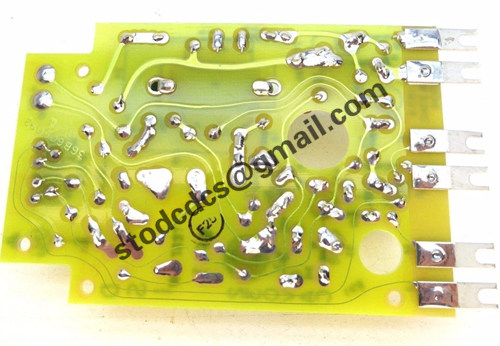

Product details picture:
