193X452AAG01 Variable Frequency Control Card

Product manual:

The GE 193X452AAG01 variable frequency control card is a key component in the GE 193X series,
Mainly used to control frequency converters to regulate the speed, torque, and other operating parameters of electric motors.
This frequency conversion control card is widely used in industrial automation systems, especially in scenarios that require precise adjustment of motor speed and energy conservation.

1、 Product Overview
Product model: 193X452AAG01

Product Name: Variable Frequency Control Card

Series: GE 193X Series

Main functions: frequency converter control, speed regulation, motor protection, energy-saving optimization

Application areas: automation control, industrial production, HVAC systems, mechanical equipment drives, etc

2、 Main functions
Frequency conversion control
The main function of the frequency conversion control card is to adjust the output frequency of the frequency converter to accurately control the speed of the motor.
By adjusting the frequency, the working state of the motor can be effectively controlled to meet different speed requirements.

motor protection
The frequency conversion control card not only adjusts the speed of the motor, but also provides functions such as overload protection, overvoltage protection, and overcurrent protection for the motor.
When the motor runs abnormally, the control card will respond promptly to protect the motor from damage.

Energy saving optimization
The variable frequency control card matches the load demand by adjusting the speed of the motor, reducing unnecessary energy consumption,
Especially in applications with large load fluctuations, precise control of the operation of the motor can significantly improve the energy efficiency of the system.

Real time feedback and monitoring
This control card supports real-time feedback and monitoring functions. Capable of real-time monitoring of the status of the electric motor,
Adjust parameters such as speed, current, voltage, etc. based on these parameters to ensure efficient operation of the motor.

Multiple control methods
Variable frequency control cards often support multiple control methods, including:

V/F control (voltage frequency control)

Vector control

direct torque control
These control methods can be selected according to different application requirements to provide the best motor control effect.

communication
Supports multiple communication protocols (such as Modbus, CANopen, etc.) and can be integrated with upper computers or other control systems to achieve remote monitoring and control.

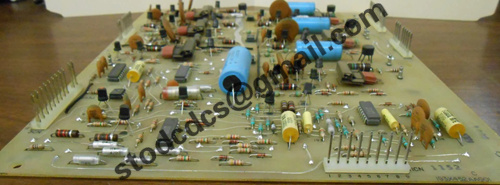

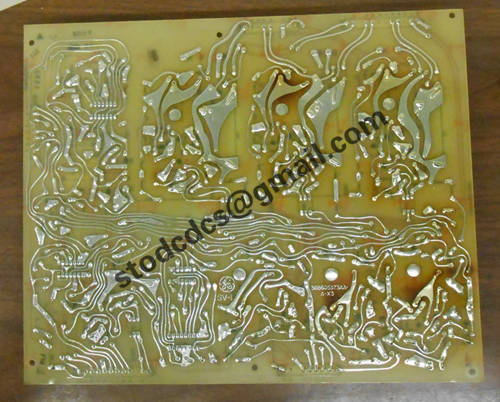

Product details picture:
