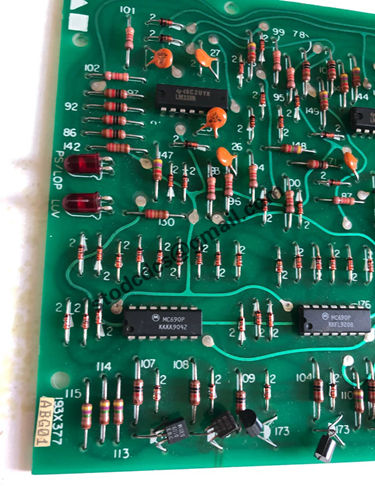

193X379ACG01 Drive Adjustment Board

Brand:GE
Model:193X379ACG01
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

193X379ACG01 Drive Adjustment Board

Product manual:

GE 193X379ACG01 Drive Regulator Board
It is one of the core control modules in the GE 193X series automation system, mainly used for regulating and controlling motor drive systems.

1、 Product Overview
Product model: 193X379ACG01

Product Name: Drive Adjustment Board

Series: GE 193X series control module

Functional positioning: motor drive regulation, speed control, drive system optimization

Application areas: Industrial automation, motor control systems, automated production lines

2、 Main functions
Motor drive regulation
By precise signal processing and adjustment, adjust the driving voltage of the motor
Current and frequency are used to achieve efficient operation of the motor.

Speed control
Support precise adjustment of motor speed to meet the needs of different working conditions,
Widely used in equipment that requires speed regulation, such as fans, pumps, conveyors, etc.

Closed loop control function
Can work in conjunction with feedback systems to form closed-loop control and adjust the output of the drive system in real-time,
Ensure smooth operation of the motor and avoid unnecessary impact caused by load fluctuations.

Multiple protection mechanisms
Provide functions such as overload protection, overvoltage protection, and over temperature protection,
Ensure the safety and stability of the motor and drive system.

3、 Typical technical parameters
Input signal type: Analog signal (such as 0-10V, 4-20mA), used to adjust the operating status of the motor

Output signal type: PWM regulation signal, used to drive the motor

Voltage Range: Supports a wide range of input voltages, suitable for devices with different voltage levels

Working temperature range:- 10 ° C to+60 ° C, suitable for various industrial environments

Electrical isolation: Provide electrical isolation between input and output to prevent electrical interference

Power requirement: Low power design, supporting long-term stable operation

Protection function: Multiple protection functions such as overload, over temperature, short circuit, etc., ensure equipment safety
